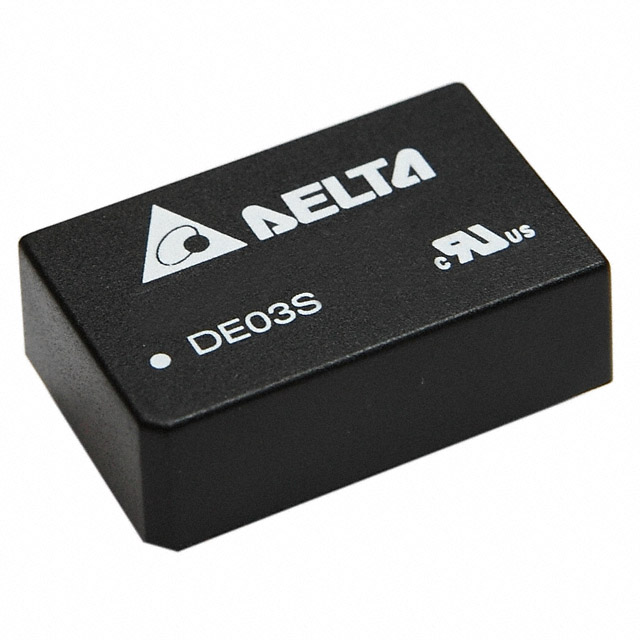

DE03D2412A

Delta Electronics

DC DC CONVERTER +/-12V 3W

Search across all available documentation for this part.

Delta Electronics

DC DC CONVERTER +/-12V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Type	Number of Outputs	Voltage - Isolation	Voltage - Output 2	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1	Applications	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Features	Efficiency	Current - Output (Max)
Delta Electronics DE03D2412A	Through Hole	24-DIP Module 8 Leads	Isolated Module	2	1.5 kV	-12 V	3 W	125 mA	125 mA	12 V	Medical	36 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	-25 °C	71 °C	18 V	OCP SCP UVLO
Delta Electronics DE03D1205A	Through Hole	24-DIP Module 8 Leads	Isolated Module	2	1.5 kV	-5 V	3 W	250 mA		5 V	Medical	18 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	-25 °C	71 °C	9 V	OCP SCP UVLO	77 %	250 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 14.04

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 36V Input

Technical documentation and resources
