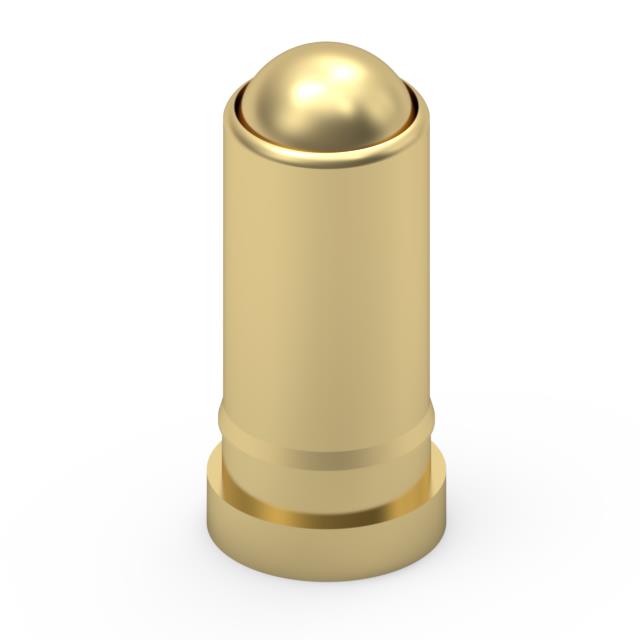

0945-0-15-20-09-14-11-0
ActiveMill-Max Manufacturing Corp.
STANDARD SPRING LOADED PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0945-0-15-20-09-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Current Rating (Amps) | 7.2 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 6.76 mm |
| Maximum Working Height [Max] | 0.266 " |
| Minimum Working Height [Min] | 6 mm |
| Minimum Working Height [Min] | 0.236 in |
| Mounting Type | Surface Mount |
| Operating Force - Initial | 30 gf |
| Operating Force - Mid Compression | 55 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 3 mm |
| Pad Layout Dimension [diameter] | 0.118 in |
| Plunger Size [diameter] | 0.091 in |
| Plunger Size [diameter] | 2.31 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.14 | |
| 10 | $ 1.86 | |||
| 25 | $ 1.78 | |||
| 50 | $ 1.74 | |||
| 100 | $ 1.67 | |||
| 250 | $ 1.51 | |||
| 500 | $ 1.39 | |||
| 1000 | $ 1.19 | |||
| 2500 | $ 1.11 | |||
Description
General part information
0945-0 Series
Contact Spring Surface Mount
Documents
Technical documentation and resources
No documents available
