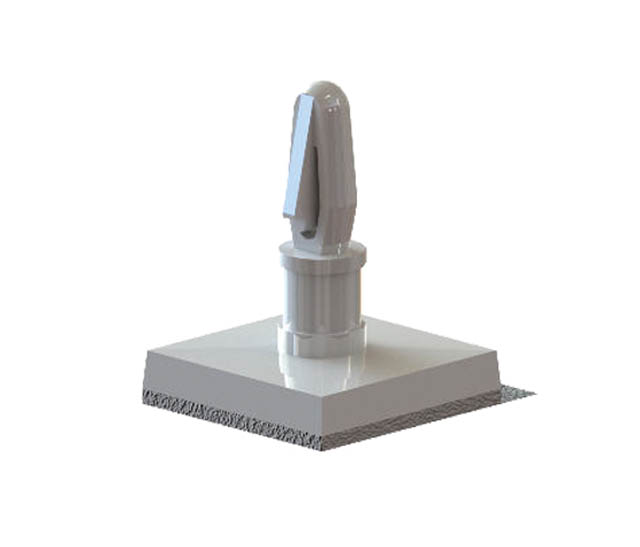

LCBSBM-5-01A-RT

Active

Essentra Access Solutions

BRD SPT SNAP LOCK ADHESIVE 5/16"

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT SNAP LOCK ADHESIVE 5/16"

Technical Specifications

Parameters and characteristics for this part

Specification	LCBSBM-5-01A-RT

Between Board Height	0.3125 in
Between Board Height	7.95 mm
Between Board Height	0.313 "
Holding Type	Snap Lock
Length - Overall	0.654 in
Length - Overall	16.6 mm
Material	Nylon
Mounting Type	Adhesive
Support Hole Diameter [diameter]	0.125 in
Support Hole Diameter [diameter]	0.125 in
Support Hole Diameter [diameter]	3.18 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Material	Between Board Height	Between Board Height	Between Board Height	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Mounting Type	Length - Overall [x]	Length - Overall [x]	Support Hole Diameter [diameter]	Length - Overall	Length - Overall	Between Board Height [z]	Between Board Height [z]
Essentra Access Solutions LCBSB-10-01A-RT	Nylon	15.88 mm	0.625 in	0.625 in	0.0625 "	0.062 "	1.57 mm	0.157 "	3.99 mm	Snap Lock	Adhesive	1.028 in	26.1 mm
Essentra Access Solutions LCBSB-12-01A-RT	Nylon	19.05 mm	0.75 in	0.75 in	0.0625 "	0.062 "	1.57 mm	0.157 "	3.99 mm	Snap Lock	Adhesive	1.154 in	29.3 mm
Essentra Access Solutions LCBSBM-5-01A-RT	Nylon	7.95 mm	0.313 "	0.3125 in	0.0625 "	0.062 "	1.57 mm	0.125 in	3.18 mm	Snap Lock	Adhesive			0.125 in	0.654 in	16.6 mm
Essentra Access Solutions LCBSB-12M-01	Nylon Flame Retardant	19.05 mm	0.75 in	0.75 in	0.0625 "	0.062 "	1.57 mm	0.157 "	4 mm	Snap Lock	Adhesive
Essentra Access Solutions LCBSB-6-01A-RT	Nylon	9.53 mm	0.375 in	0.375 in	0.0625 "	0.062 "	1.57 mm	0.157 "	3.99 mm	Snap Lock	Adhesive	0.776 in	19.7 mm
Essentra Access Solutions LCBSBM-3-01A-RT	Nylon	4.78 mm	0.188 "	0.1875 "	0.0625 "	0.062 "	1.57 mm	0.125 in	3.18 mm	Snap Lock	Adhesive	0.531 "	13.5 mm	0.125 in
Essentra Access Solutions LCBSB-8M-01A-RT	Nylon				0.0625 "	0.062 "	1.57 mm	0.157 "	3.99 mm	Snap Lock	Adhesive				0.717 in	18.2 mm	0.315 in	8 mm
Essentra Access Solutions LCBSBM-10-01A	Nylon	15.88 mm	0.625 in	0.625 in	0.0625 "	0.062 "	1.57 mm	0.125 in	3.18 mm	Snap Lock	Adhesive			0.125 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Lock / Adhesive Nylon 0.313" (7.95mm) 5/16"
