JL05-6A18-11PC-F0-R

Active

JAE Electronics

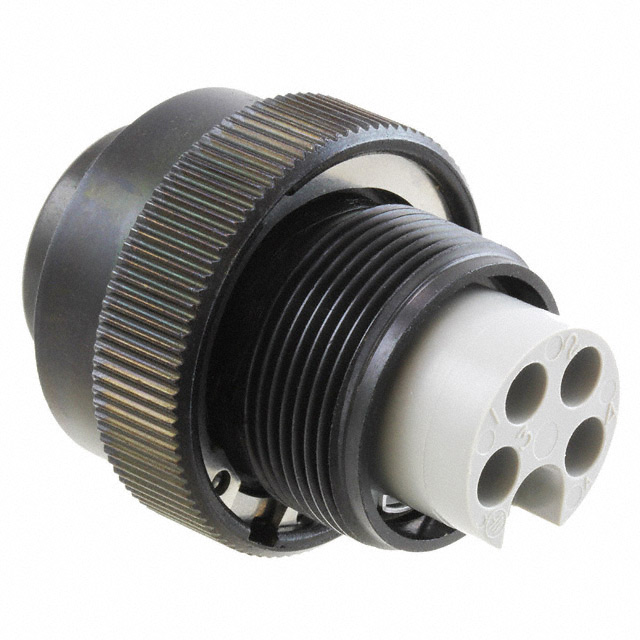

CONN PLUG HSG MALE 5POS INLINE

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG MALE 5POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	JL05-6A18-11PC-F0-R

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	12
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Finish	Zinc
Shell Material	Aluminum
Shell Size - Insert	18-11
Shielding	Unshielded
Type	For Male Pins

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Type	Contact Shape	Insert Material	Housing Color	Number of Positions	Mounting Type	Ingress Protection	Fastening Type	Connector Type	Shielding	Features	Contact Size	Orientation	Shell Material	Material Flammability Rating	Note	Shell Size - Insert	Contact Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]
JAE Electronics JL05-6A18-19APC-F0-R	-55 °C	125 °C	Zinc	For Male Pins	Circular	Synthetic Resin	Black	19	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Bayonet Lock	Plug Housing	Unshielded	Coupling Nut	20	N	Aluminum	UL94 V-0	Contacts Not Included	18-19A	Crimp
JAE Electronics JL05-6A18-19ASC-F0-R	-55 °C	125 °C	Zinc	For Female Sockets	Circular	Synthetic Resin	Black	19	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Bayonet Lock	Plug Housing	Unshielded	Coupling Nut	20	N	Aluminum	UL94 V-0	Contacts Not Included	18-19A	Crimp
JAE Electronics JL05-6A18-11PC-F0-R	-55 °C	125 °C	Zinc	For Male Pins	Circular	Synthetic Resin	Black	5	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Bayonet Lock	Plug Housing	Unshielded	Coupling Nut	12	N	Aluminum	UL94 V-0	Contacts Not Included	18-11	Crimp
JAE Electronics JL05-6A18-1SC-F0-R	-55 °C	125 °C	Zinc	For Female Sockets	Circular	Synthetic Resin	Black	10	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Bayonet Lock	Plug Housing	Unshielded	Coupling Nut	16	N	Aluminum	UL94 V-0	Contacts Not Included		Crimp	1	18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	18	$ 21.03

General part information

5 (4 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
