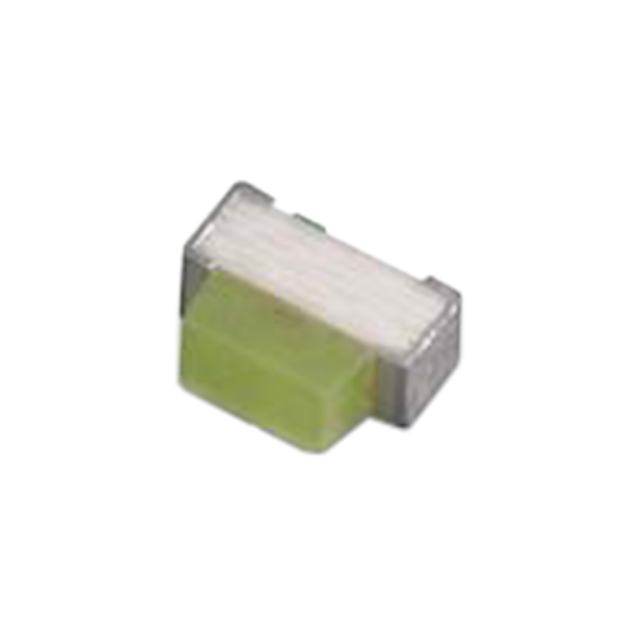

Specification	APA1606VRBXF/A-5MAV

Color	Blue
Configuration	Standard
Current - Test	5 mA
Height (Max)	0.7 mm
Lens Color	Yellow
Lens Length	1.1 mm
Lens Style	Rectangle, Flat Top
Lens Transparency	Diffused
Lens Width	0.6 mm
Millicandela Rating	120 mcd
Mounting Type	Right Angle, Surface Mount
Package / Case	No Lead, 2-SMD
Package Name	Chip LED
Size / Dimension Length	1.6 mm
Size / Dimension Width	1.2 mm
Viewing Angle	110 °

APA1606 Series

Part	Size / Dimension Length	Size / Dimension Width	Lens Style	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Color	Color	Height (Max)	Package Name	Lens Transparency	Lens Width	Lens Length	Current - Test	Wavelength - Peak	Wavelength - Dominant	Mounting Type	Configuration	Viewing Angle	Package / Case
Kingbright APA1606ZGC/G	1.6 mm	1.2 mm	Flat Top Rectangle	650 mcd	3.2 V	Colorless	Green	0.7 mm	2-SMD	Clear	0.6 mm	1.1 mm	20 mA	520 nm	525 nm	Right Angle Surface Mount	Standard	110 °	2-SMD No Lead
Kingbright APA1606CGCK	1.6 mm	1.2 mm	Flat Top Rectangle	50 mcd	2.1 V	Colorless	Green	0.6 mm	Chip LED	Clear	0.6 mm	1.2 mm	20 mA	574 nm	570 nm	Right Angle Surface Mount	Standard	110 °	2-SMD No Lead
Kingbright APA1606QBC/D	1.6 mm	1.2 mm	Flat Top Rectangle	80 mcd	3.3 V	Colorless	Blue	0.6 mm	Chip LED	Clear	0.6 mm	1.2 mm	20 mA	460 nm	465 nm	Right Angle Surface Mount	Standard	110 °	2-SMD No Lead
Kingbright APA1606SECK	1.6 mm	1.2 mm	Flat Top Rectangle	180 mcd	2.1 V	Colorless	Orange	0.6 mm	Chip LED	Clear	0.6 mm	1.2 mm	20 mA	610 nm	601 nm	Right Angle Surface Mount	Standard	110 °	2-SMD No Lead
Kingbright APA1606VRBXF/A-5MAV	1.6 mm	1.2 mm	Flat Top Rectangle	120 mcd		Yellow	Blue	0.7 mm	Chip LED	Diffused	0.6 mm	1.1 mm	5 mA			Right Angle Surface Mount	Standard	110 °	2-SMD No Lead
Kingbright APA1606SYCK	1.6 mm	1.2 mm	Flat Top Rectangle	150 mcd	2 V	Colorless	Yellow	0.6 mm	Chip LED	Clear	0.6 mm	1.2 mm	20 mA	590 nm	590 nm	Right Angle Surface Mount	Standard	110 °	2-SMD No Lead
Kingbright APA1606ZGC	1.6 mm	1.2 mm	Flat Top Rectangle	400 mcd	3.3 V	Colorless	Green	0.6 mm	Chip LED	Clear	0.6 mm	1.2 mm	20 mA	515 nm	525 nm	Right Angle Surface Mount	Standard	110 °	2-SMD No Lead
Kingbright APA1606SURCK	1.6 mm	1.2 mm	Flat Top Rectangle	80 mcd	1.95 V	Colorless	Red	0.6 mm	Chip LED	Clear	0.6 mm	1.2 mm	20 mA	645 nm	630 nm	Right Angle Surface Mount	Standard	110 °	2-SMD No Lead
Kingbright APA1606ZGCK	1.6 mm	1.2 mm	Flat Top Rectangle	300 mcd	3.3 V	Colorless	Green	0.7 mm	2-SMD	Clear	0.6 mm	1.1 mm	20 mA	515 nm	525 nm	Right Angle Surface Mount	Standard	110 °	2-SMD No Lead
Kingbright APA1606PBC/A	1.6 mm	1.2 mm	Flat Top Rectangle	60 mcd	3.2 V	Colorless	Blue	0.6 mm	Chip LED	Clear	0.6 mm	1.2 mm	20 mA	468 nm	470 nm	Right Angle Surface Mount	Standard	110 °	2-SMD No Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

APA1606VRBXF/A-5MAV | Datasheet
