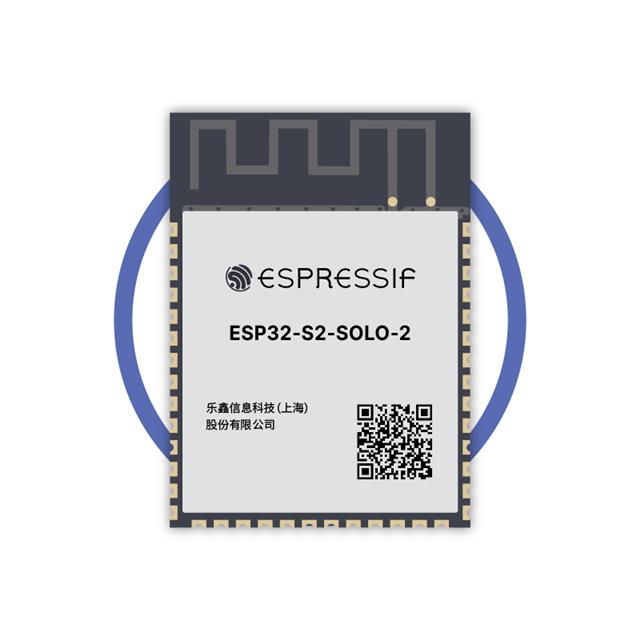

ESP32-S2-SOLO-2-N4
ActiveEspressif Systems
RF TXRX MOD WIFI PCB TRACE SMD
Deep-Dive with AI
Search across all available documentation for this part.
ESP32-S2-SOLO-2-N4
ActiveEspressif Systems
RF TXRX MOD WIFI PCB TRACE SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ESP32-S2-SOLO-2-N4 |
|---|---|
| Antenna Type | PCB Trace |
| Current - Transmitting [Max] | 310 mA |
| Current - Transmitting [Min] | 165 mA |
| Data Rate | 150 Mbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 4 MB |
| Memory Size [custom] | 336 kB |
| Memory Size [custom] | 128 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 41-SMD Module |
| Power - Output | 19.5 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -97 dBm |
| Serial Interfaces | SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC |
| Utilized IC / Part | ESP32-S2 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
ESP32-S2 Series
| Part | Antenna Type | Package / Case | Serial Interfaces | Current - Receiving [Min] | Current - Receiving [Max] | RF Family/Standard | Sensitivity | Current - Transmitting [Max] | Current - Transmitting [Min] | Protocol | Mounting Type | Data Rate | Frequency | Voltage - Supply [Min] | Voltage - Supply [Max] | Utilized IC / Part | Operating Temperature [Max] | Operating Temperature [Min] | Power - Output | Memory Size | Type | Supplied Contents | Frequency [Max] | Frequency [Min] | For Use With/Related Products | Memory Size [custom] | Memory Size [custom] | Memory Size [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Espressif Systems | Antenna Not Included U.FL | 56-VFQFN Exposed Pad | ADC I2C I2S PWM SPI UART | 63 mA | 68 mA | WiFi | -97 dBm | 310 mA | 160 mA | 802.11b/g/n | Surface Mount | 150 Mbps | 2.4 GHz | 2.8 V | 3.6 V | ESP32-S2 | 125 °C | -40 °C | 19.5 dBm | |||||||||
Espressif Systems | Antenna Not Included U.FL | 56-VFQFN Exposed Pad | ADC I2C I2S PWM SPI UART | 63 mA | 68 mA | WiFi | -97 dBm | 310 mA | 160 mA | 802.11b/g/n | Surface Mount | 150 Mbps | 2.4 GHz | 2.8 V | 3.6 V | ESP32-S2 | 125 °C | -40 °C | 19.5 dBm | 2 MB 4 MB | ||||||||
Espressif Systems | Antenna Not Included | 56-VFQFN Exposed Pad | ADC GPIO I2C I2S PWM SPI UART USB | 63 mA | 68 mA | WiFi | -97 dBm | 310 mA | 160 mA | 802.11b/g/n | Surface Mount | 150 Mbps | 2.4 GHz | 2.8 V | 3.6 V | ESP32-S2 | 105 °C | -40 °C | 19.5 dBm | 2 MB 128 kB 320 kB | ||||||||
Espressif Systems | 2.4 GHz | 802.11 a/b/g/n (Wi-Fi WiFi WLAN) Transceiver | Board(s) | |||||||||||||||||||||||||
Espressif Systems | Antenna Not Included U.FL | ADC GPIO I2C I2S PWM SPI UART USB | 63 mA | 68 mA | WiFi | -97 dBm | 310 mA | 160 mA | 802.11b/g/n | Surface Mount | 150 Mbps | 3 V | 3.6 V | ESP32-S2 | 85 °C | -40 °C | 19.5 dBm | 2.484 GHz | 2.412 GHz | |||||||||
Espressif Systems | PCB Trace | 56-VFQFN Exposed Pad | ADC I2C I2S PWM SPI UART | 63 mA | 68 mA | WiFi | -97 dBm | 310 mA | 160 mA | 802.11b/g/n | Surface Mount | 150 Mbps | 2.4 GHz | 2.8 V | 3.6 V | ESP32-S2 | 125 °C | -40 °C | 19.5 dBm | 2 MB 4 MB | ||||||||
Espressif Systems | PCB Trace | 56-VFQFN Exposed Pad | ADC GPIO I2C I2S PWM SPI UART USB | 63 mA | 68 mA | WiFi | -97 dBm | 310 mA | 160 mA | 802.11b/g/n | Surface Mount | 150 Mbps | 2.4 GHz | 2.8 V | 3.6 V | ESP32-S2 | 105 °C | -40 °C | 19.5 dBm | |||||||||
Espressif Systems | 2.4 GHz | Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN) | Board(s) | ESP32-S2-WROOM | ||||||||||||||||||||||||
Espressif Systems | PCB Trace | 41-SMD Module | ADC GPIO I2C I2S PWM SPI UART USB | WiFi | -97 dBm | 310 mA | 165 mA | 802.11b/g/n | Surface Mount | 150 Mbps | 2.4 GHz | 3 V | 3.6 V | ESP32-S2 | 85 °C | -40 °C | 19.5 dBm | 4 MB | 336 kB | 128 kB | ||||||||
Espressif Systems | Antenna Not Included U.FL | 56-VFQFN Exposed Pad | ADC GPIO I2C I2S PWM SPI UART USB | 63 mA | 68 mA | WiFi | -97 dBm | 310 mA | 160 mA | 802.11b/g/n | Surface Mount | 150 Mbps | 2.4 GHz | 3 V | 3.6 V | ESP32-S2FH4 | 105 °C | -40 °C | 19.5 dBm | 4 MB | 336 kB | 128 kB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 650 | $ 2.40 | |
| Cut Tape (CT) | 1 | $ 2.40 | ||
| Digi-Reel® | 1 | $ 2.40 | ||
Description
General part information
ESP32-S2 Series
WiFi 802.11b/g/n Transceiver Module 2.4GHz PCB Trace Surface Mount
