Q-1T02P0005012i

Active

Amphenol Custom Cable

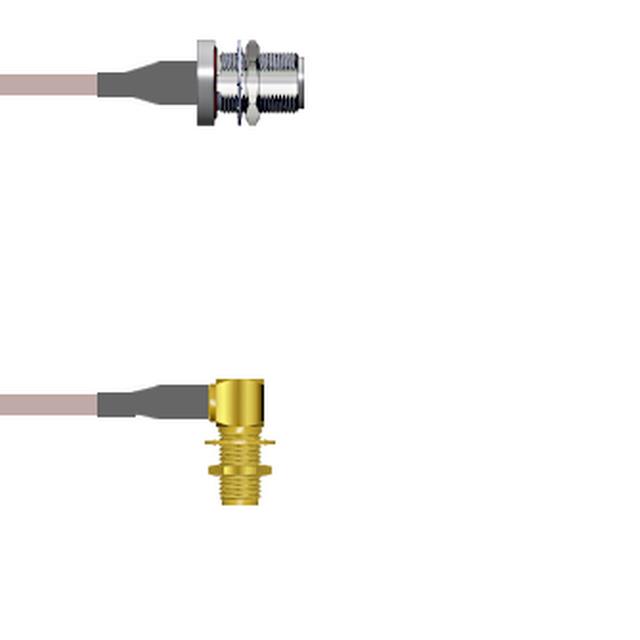

CBL ASSY SMA-NTYPE JACK-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T02P0005012i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T02P0005012i

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1T02P0 Series

Part	1st Connector Mounting Feature	2nd Connector Mounting Feature	2nd Contact Gender	Features	Style	2nd Connector Mounting Type	1st Contact Gender	1st Connector Mounting Type	Length	Length	Frequency - Max [Max]	Overall Impedance	Color	1st Connector	2nd Connector	Cable Type	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-1T02P00050.5M	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Shielded	SMA to N-Type	Panel Mount	Female	Panel Mount	50 cm	19.69 "	11 GHz	50 Ohms	Copper	Right Angle SMA Jack	N-Type Jack	RG-316
Amphenol Custom Cable Q-1T02P0003018i	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Shielded	SMA to N-Type	Panel Mount	Female	Panel Mount			11 GHz	50 Ohms	Black	Right Angle SMA Jack	N-Type Jack	RG-174	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1T02P0005060i	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Shielded	SMA to N-Type	Panel Mount	Female	Panel Mount	1.5 m	5 '	11 GHz	50 Ohms	Copper	Right Angle SMA Jack	N-Type Jack	RG-316			5 ft
Amphenol Custom Cable Q-1T02P0003084i	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Shielded	SMA to N-Type	Panel Mount	Female	Panel Mount	2.1 m	84 in	11 GHz	50 Ohms	Black	Right Angle SMA Jack	N-Type Jack	RG-174			7 ft
Amphenol Custom Cable Q-1T02P0003024i	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Shielded	SMA to N-Type	Panel Mount	Female	Panel Mount	609.6 mm	24 "	11 GHz	50 Ohms	Black	Right Angle SMA Jack	N-Type Jack	RG-174
Amphenol Custom Cable Q-1T02P0005072i	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Shielded	SMA to N-Type	Panel Mount	Female	Panel Mount	1.8 m	72 in	11 GHz	50 Ohms	Copper	Right Angle SMA Jack	N-Type Jack	RG-316			6 ft
Amphenol Custom Cable Q-1T02P00051.5M	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Shielded	SMA to N-Type	Panel Mount	Female	Panel Mount	1.5 m	59.1 in	11 GHz	50 Ohms	Copper	Right Angle SMA Jack	N-Type Jack	RG-316			4.9 ft
Amphenol Custom Cable Q-1T02P0005012i	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Shielded	SMA to N-Type	Panel Mount	Female	Panel Mount	304.8 mm	12 "	11 GHz	50 Ohms	Copper	Right Angle SMA Jack	N-Type Jack	RG-316
Amphenol Custom Cable Q-1T02P0003003i	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Shielded	SMA to N-Type	Panel Mount	Female	Panel Mount	76.2 mm	3 in	11 GHz	50 Ohms	Black	Right Angle SMA Jack	N-Type Jack	RG-174
Amphenol Custom Cable Q-1T02P0005084i	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Shielded	SMA to N-Type	Panel Mount	Female	Panel Mount	2.1 m	84 in	11 GHz	50 Ohms	Copper	Right Angle SMA Jack	N-Type Jack	RG-316			7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 96.27
		25	$ 94.40
		50	$ 92.53
		100	$ 90.66
		250	$ 88.79

Description

General part information

Q-1T02P0 Series

Cable Assembly Coaxial SMA to N-Type RG-316 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
