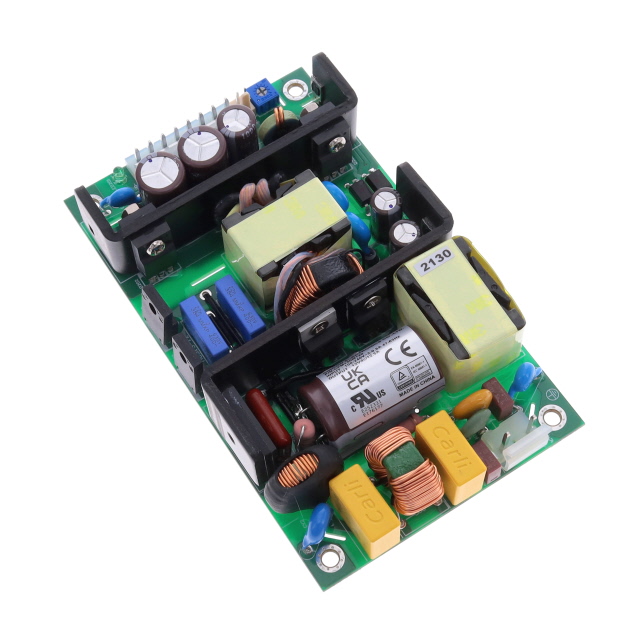

CFM150M480

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 48V 150W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM150M480

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 48V 150W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFM150M480	CFM150 Series

Applications	ITE (Commercial), Medical	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, cURus, FCC, TUV	CE, cURus, FCC, DEMKO, TUV
Current - Output 1	3.13 A	2.5 - 12.5 A
Efficiency	93 %	90 - 94 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC	Adjustable Output, Universal Input, PFC, Remote Sense, Baseplate
Minimum Load Required	-	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 - 80 ¯C
Operating Temperature [Min]	-20 °C	-30 - -20 °C
Power (Watts)	150 W	120 - 150 W
Size / Dimension [x]	5 in	4 - 5 in
Size / Dimension [x]	127 mm	101.6 - 127 mm
Size / Dimension [y]	76.2 mm	50.8 - 76.2 mm
Size / Dimension [y]	3 "	2 - 3 in
Size / Dimension [z]	26.7 mm	26.7 - 34.6 mm
Size / Dimension [z]	1.05 "	1.05 - 1.36 in
Standard Number	-	60335-1, 60601-1, 62368-1
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	5.656 kV	5.656 - 3000 V
Voltage - Output 1	48 V	12 - 48 V

CFM150 Series

AC/DC CONVERTER 48V 120W

Part	Features	Voltage - Input [Min]	Voltage - Input [Max]	Type	Mounting Type	Voltage - Isolation	Current - Output 1	Number of Outputs	Efficiency	Applications	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Standard Number	Power (Watts)
Cincon Electronics Co. LTD CFM150S480	Adjustable Output, Universal Input	90 VAC	264 VAC	Open Frame	Chassis Mount	3000 V	2.5 A	1	94 %	Household Appliances, ITE (Commercial)	48 V	-30 °C	80 ¯C	50.8 mm	1.1 in	2 in	28 mm	101.6 mm	4 in	CE, cURus, DEMKO, FCC
Cincon Electronics Co. LTD CFM150S240	Adjustable Output, PFC, Universal Input	90 VAC	264 VAC	Open Frame	Chassis Mount	3000 V	6.25 A	1	94 %	Household Appliances, ITE (Commercial)	24 V	-30 °C	80 ¯C	50.8 mm	1.28 in	2 in	32.5 mm	101.6 mm	4 in	CE, cURus, DEMKO, FCC	60335-1, 60601-1, 62368-1	120 W, 150 W
Cincon Electronics Co. LTD CFM150M120	Adjustable Output, PFC, Remote Sense, Universal Input	90 VAC	264 VAC	Open Frame	Chassis Mount	5.656 kV	12.5 A	1	90 %	ITE (Commercial), Medical	12 V	-20 °C	70 °C	76.2 mm	1.05 "	3 "	26.7 mm	127 mm	5 in	CE, cURus, FCC, TUV		150 W
Cincon Electronics Co. LTD CFM150S360-B	Adjustable Output, Baseplate, Universal Input	90 VAC	264 VAC	Open Frame	Chassis Mount	3000 V	3.33 A	1	94 %	Household Appliances, ITE (Commercial)	36 V	-30 °C	80 ¯C	50.8 mm	1.36 "	2 in	34.6 mm	116.8 mm	4.6 "	CE, cURus, DEMKO, FCC
Cincon Electronics Co. LTD CFM150S480-B	Adjustable Output, Baseplate, Universal Input	90 VAC	264 VAC	Open Frame	Chassis Mount	3000 V	2.5 A	1	94 %	Household Appliances, ITE (Commercial)	48 V	-30 °C	80 ¯C	50.8 mm	1.36 "	2 in	34.6 mm	116.8 mm	4.6 "	CE, cURus, DEMKO, FCC
Cincon Electronics Co. LTD CFM150S280	Adjustable Output, Universal Input	90 VAC	264 VAC	Open Frame	Chassis Mount	3000 V	4.28 A	1	94 %	Household Appliances, ITE (Commercial)	28 V	-30 °C	80 ¯C	50.8 mm	1.1 in	2 in	28 mm	101.6 mm	4 in	CE, cURus, DEMKO, FCC
Cincon Electronics Co. LTD CFM150M480	Adjustable Output, PFC, Remote Sense, Universal Input	90 VAC	264 VAC	Open Frame	Chassis Mount	5.656 kV	3.13 A	1	93 %	ITE (Commercial), Medical	48 V	-20 °C	70 °C	76.2 mm	1.05 "	3 "	26.7 mm	127 mm	5 in	CE, cURus, FCC, TUV		150 W
Cincon Electronics Co. LTD CFM150S120	Adjustable Output, Universal Input	90 VAC	264 VAC	Open Frame	Chassis Mount	3000 V	10 A	1	93 %	Household Appliances, ITE (Commercial)	12 V	-30 °C	80 ¯C	50.8 mm	1.1 in	2 in	28 mm	101.6 mm	4 in	CE, cURus, DEMKO, FCC
Cincon Electronics Co. LTD CFM150S120-B	Adjustable Output, Baseplate, Universal Input	90 VAC	264 VAC	Open Frame	Chassis Mount	3000 V	10 A	1	93 %	Household Appliances, ITE (Commercial)	12 V	-30 °C	80 ¯C	50.8 mm	1.36 "	2 in	34.6 mm	116.8 mm	4.6 "	CE, cURus, DEMKO, FCC
Cincon Electronics Co. LTD CFM150S280-B	Adjustable Output, Baseplate, Universal Input	90 VAC	264 VAC	Open Frame	Chassis Mount	3000 V	4.28 A	1	94 %	Household Appliances, ITE (Commercial)	28 V	-30 °C	80 ¯C	50.8 mm	1.36 "	2 in	34.6 mm	116.8 mm	4.6 "	CE, cURus, DEMKO, FCC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 55.09
		5	$ 51.90
		10	$ 50.58
		25	$ 48.89
		50	$ 47.65
		100	$ 46.44

Description

General part information

CFM150 Series

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
