1410972-3

Active

TE Connectivity AMP Connectors

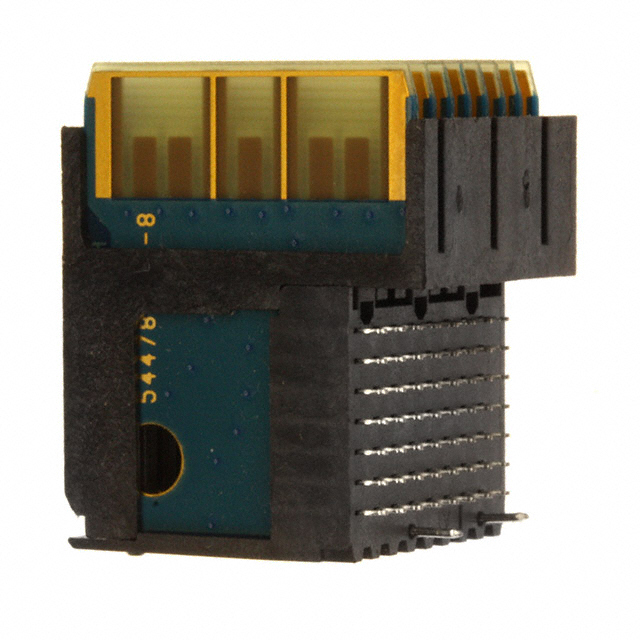

CONN PLUG VITA46 56POS EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG VITA46 56POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1410972-3

Color	Black
Connector Style	VITA 46, Half, Left End
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Layout, Typical [custom]	16
Contact Layout, Typical [custom]	40
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	8
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit
Voltage Rating	50 V

CONN PLUG VITA46 56POS EDGE MNT

Part	Connector Type	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Features	Color	Pitch [x]	Pitch [x]	Number of Positions Loaded	Voltage Rating	Number of Columns	Connector Style	Number of Positions	Contact Finish	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Connector Usage	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Rows
TE Connectivity AMP Connectors 1410972-3	Plug, Male Blades	16	40	Board Guide	Black	0.071 in	1.8 mm	All	50 V	8	Half, Left End, VITA 46	56	Gold	UL94 V-0	50 µin	1.27 µm	Daughtercard	Board Edge, Right Angle, Through Hole	105 ░C	-55 °C	Press-Fit	7
