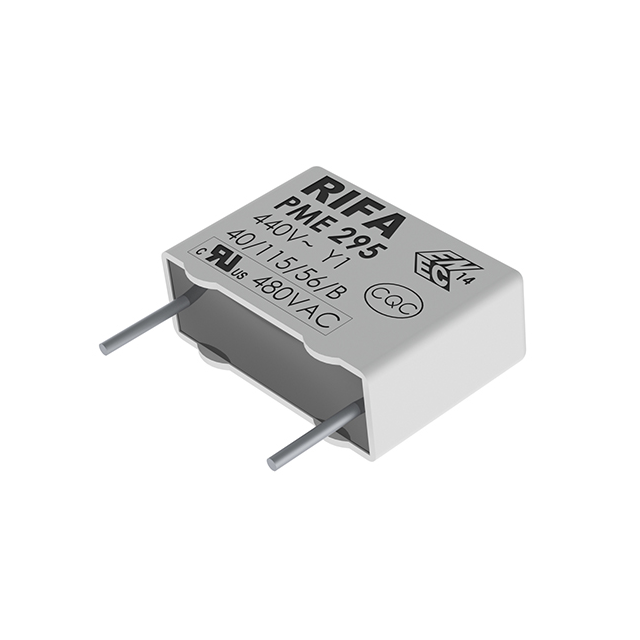

PME295RB3680MR30

Active

KEMET

CAP FILM 680PF 20% 1.5KVDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 680PF 20% 1.5KVDC RAD

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Termination	Tolerance	Dielectric Material	Lead Spacing	Lead Spacing	Mounting Type	Ratings	Voltage Rating - AC	Capacitance	Voltage Rating - DC	Voltage Rating - DC
KEMET PME295RB4100MR30	EMI RFI Suppression	-40 °C	115 °C	0.217 in	5.5 mm	0.709 in	18 mm	0.492 in	12.5 mm	Radial	PC Pins	20 %	Paper Metallized	15 mm	0.591 in	Through Hole	Y1	480 V	0.001 µF
KEMET PME295RB3680MR30	EMI RFI Suppression	-40 °C	115 °C	0.217 in	5.5 mm	0.709 in	18 mm	0.492 in	12.5 mm	Radial	PC Pins	20 %	Paper Metallized	15 mm	0.591 in	Through Hole	Y1	440 V	680 pF	1.5 kVDC	1.5 kV
KEMET PME295RB4220MR30	EMI RFI Suppression	-40 °C	115 °C	0.256 in	6.5 mm	0.709 in	18 mm	0.492 in	12.5 mm	Radial	PC Pins	20 %	Paper Metallized	15 mm	0.591 in	Through Hole	Y1	480 V	2200 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

680 pF Film Capacitor 440V 1500V (1.5kV) Paper, Metallized Radial
