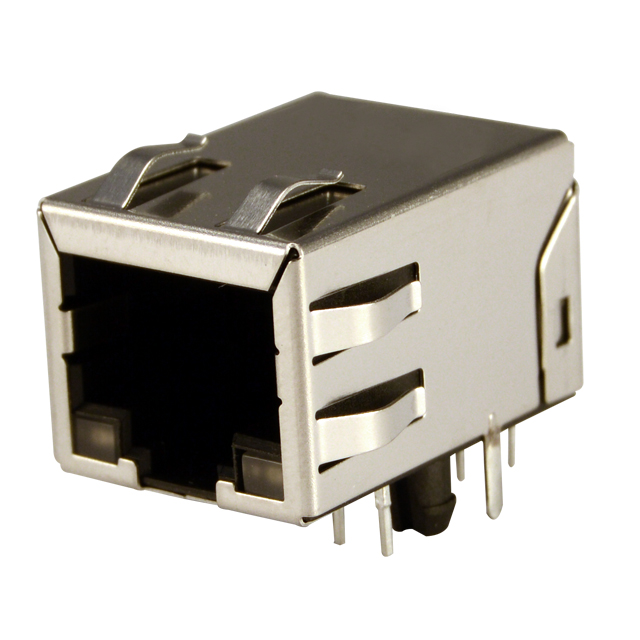

G1LX-188S7-BB-YG1-50

Active

Kycon, Inc.

CONN JACK 1PORT PCB

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN JACK 1PORT PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT PCB

Part	Connector Type	Applications	Height Above Board	Height Above Board	Termination	Number of Ports	Tab Direction	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Material	Contact Finish Thickness	Contact Finish	Shielding	LED Color	Shield Material	Housing Material	Number of Rows	Orientation
Kycon, Inc. G1LX-188S7-BB-YG1-50	RJ45	10/100 Base-T	0.526 in	13.36 mm	Solder	1	Down	70 °C	0 °C	Through Hole	Copper Alloy	Flash	Gold	Shielded, EMI Finger	Yellow - Green	Stainless Steel	Thermoplastic	1	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T
