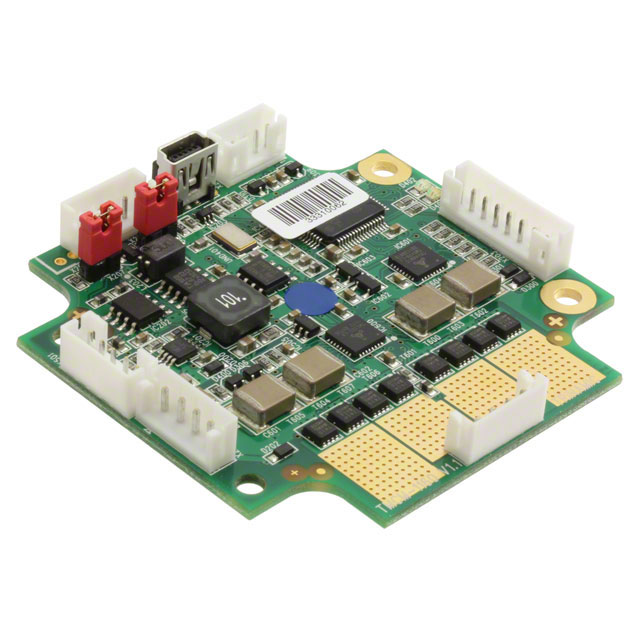

TMCM-1160-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

STEPPER DRIVER 2.8A 9-51V LOAD

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

STEPPER DRIVER 2.8A 9-51V LOAD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMCM-1160-CANOPEN	TMCM-1160 Series

Accessory Type	-	Cable Assembly
Control / Drive Type	Bipolar, Stepper	Bipolar, Stepper
Current - Output	2.8 A	2.8 A
For Use With/Related Products	-	TMCM-1160 Series
Interface	-	Step / Direction, RS-485, USB
Motor Type	Stepper	Stepper
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Type	Board	Board
Usage	-	Motor
Voltage - Load [Max]	51 V	51 V
Voltage - Load [Min]	9 V	9 V
Voltage - Supply [Max]	48 V	48 V
Voltage - Supply [Min]	12 V	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 207.07

STEPPER DRIVER 2.8A 9-51V LOAD

Part	Type	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Control / Drive Type	Motor Type	Current - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Accessory Type	Usage	For Use With/Related Products
Analog Devices Inc./Maxim Integrated TMCM-1160-CANOPEN	Board	Chassis Mount	51 V	9 V	40 °C	0 °C	Bipolar, Stepper	Stepper	2.8 A	12 V	48 V
Analog Devices Inc./Maxim Integrated TMCM-1160-TMCL	Board	Chassis Mount	51 V	9 V	40 °C	0 °C	Bipolar, Stepper	Stepper	2.8 A	12 V	48 V	RS-485, Step / Direction, USB
Analog Devices Inc./Maxim Integrated TMCM-1160-CABLE													Cable Assembly	Motor	TMCM-1160 Series

General part information

Stepper, Bipolar 12 ~ 48VDC Supply 2.8A 9 ~ 51V Load

Technical documentation and resources
