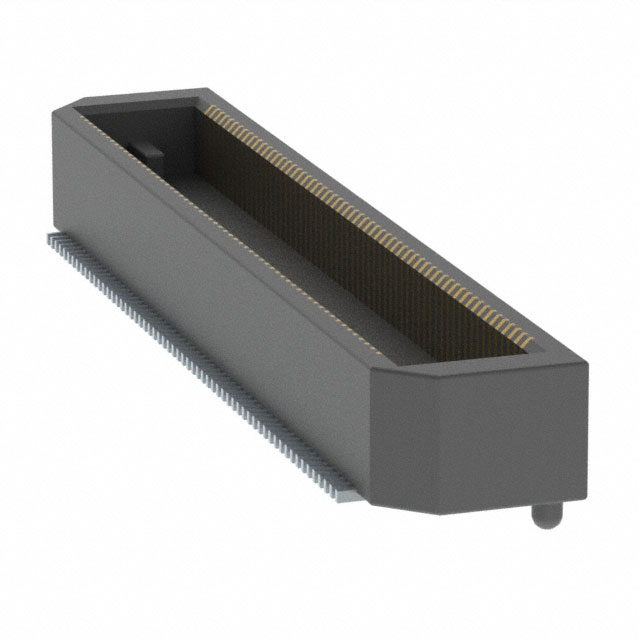

BTH-060-01-L-D-A-K-TR

Active

Samtec Inc.

MEZZANINE CONN, HEADER, 120POS, 0.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBTH Series Other Related Documents 01 Datasheet +3

BTH-060-01-L-D-A-K-TR

Active

Samtec Inc.

MEZZANINE CONN, HEADER, 120POS, 0.5MM

Deep-Dive with AI

DocumentsBTH Series Other Related Documents 01 Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-060-01-L-D-A-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BTH-060 Series

Board to Board & Mezzanine Connectors 0.50 mm Basic Blade & Beam Terminal Strip

Part	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Contact Finish	Mounting Type	Height Above Board	Height Above Board	Mated Stacking Heights	Features	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTH-060-01-F-D-EM2	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	120	Header Outer Shroud Contacts	Gold	Board Edge Straddle Mount
Samtec Inc. BTH-060-03-L-D-A	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	120	Header Outer Shroud Contacts	Gold	Surface Mount	10.27 mm	0.404 in	11 mm	Board Guide
Samtec Inc. BTH-060-01-C-D-A-K	0.5 mm	0.02 in	2	50 µin	1.27 µm	120	Header Outer Shroud Contacts	Gold	Surface Mount			5 mm	Board Guide
Samtec Inc. BTH-060-05-F-D-A	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	120	Header Outer Shroud Contacts	Gold	Surface Mount	18.24 mm	0.718 in	19 mm	Board Guide
Samtec Inc. BTH-060-06-L-D-A	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	120	Header Outer Shroud Contacts	Gold	Surface Mount			22 mm	Board Guide	21.23 mm	0.836 "
Samtec Inc. BTH-060-01-F-D-A-TR	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	120	Header Outer Shroud Contacts	Gold	Surface Mount			5 mm	Board Guide
Samtec Inc. BTH-060-06-H-D-LC	0.5 mm	0.02 in	2	30 Áin	0.76 Ám	120	Header Outer Shroud Contacts	Gold	Surface Mount			22 mm		21.23 mm	0.836 "
Samtec Inc. BTH-060-01-L-D-A-K-TR	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	120	Header Outer Shroud Contacts	Gold	Surface Mount			5 mm	Board Guide
Samtec Inc. BTH-060-05-L-D	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	120	Header Outer Shroud Contacts	Gold	Surface Mount	18.24 mm	0.718 in	19 mm
Samtec Inc. BTH-060-02-F-D-A-K-TR	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	120	Header Outer Shroud Contacts	Gold	Surface Mount	7.26 mm	0.286 "	8 mm	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 11.62
		10	$ 8.93
		25	$ 8.06
		50	$ 7.48
		100	$ 6.95
	Digi-Reel®	1	$ 11.62
		10	$ 8.93
		25	$ 8.06
		50	$ 7.48
		100	$ 6.95
	Tape & Reel (TR)	425	$ 6.00
		850	$ 5.61
		1275	$ 5.40
Newark	Each (Supplied on Cut Tape)	1	$ 4.57
		10	$ 4.42
		25	$ 4.26
		50	$ 4.11
		100	$ 3.50
		250	$ 3.21
		500	$ 2.92
