ELFP02210

Active

AMPHENOL PCD

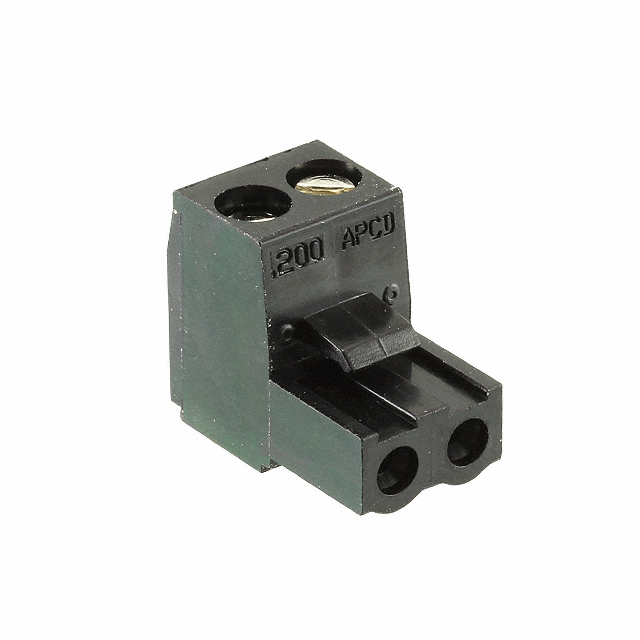

TERM BLOCK PLUG 2POS 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 2POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFP02210

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	15.04 mm
Insulation Height	0.592 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG	12 AWG
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	14 AWG

Part	Color	Pitch [x]	Pitch [x]	Mounting Type	Number of Levels	Insulation Height	Insulation Height	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Torque - Screw	Torque - Screw	Number of Positions	Type	Voltage - UL	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG [Min]	Contact Material	Housing Material	Positions Per Level
AMPHENOL PCD ELFP02210	Black	0.2 in	5.08 mm	Free Hanging (In-Line)	1	15.04 mm	0.592 in	Tin	-40 °C	203 °F	UL94 V-0	0.79 Nm	7 Lb-In	2	Plug Female Sockets	300 V	Screw - Rising Cage Clamp	26 AWG	12 AWG	14 AWG	Copper Alloy	Polyphenylene Oxide (PPO)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 1.16

General part information

2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
