Q-3C04H000R024I

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC PLUG-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-3C04H000R024I

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC PLUG-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3C04H000R024I

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-3C04H0 Series

Part	Cable Type	Overall Impedance	Style	Features	2nd Contact Gender	Length	Length	Length	1st Connector	Frequency - Max [Max]	1st Contact Gender	Color	Connector Impedance	2nd Connector Mounting Feature	2nd Connector	1st Connector Mounting Type	Cable Impedance	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-3C04H000R108I	RG-316 DS	50 Ohms	SMA to TNC	Shielded	Female	2.7 m	9 ft	108 in	SMA Plug	3 GHz	Male	Copper	50 Ohms	Bulkhead - Front Side Nut	TNC Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount
Amphenol Custom Cable Q-3C04H000R003M	RG-316 DS	50 Ohms	SMA to TNC	Shielded	Female	3 m	9.8 '	118.1 in	SMA Plug	3 GHz	Male	Copper	50 Ohms	Bulkhead - Front Side Nut	TNC Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount
Amphenol Custom Cable Q-3C04H000R001M	RG-316 DS	50 Ohms	SMA to TNC	Shielded	Female	1 m	3.3 ft	39.4 in	SMA Plug	3 GHz	Male	Copper	50 Ohms	Bulkhead - Front Side Nut	TNC Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount
Amphenol Custom Cable Q-3C04H000R0.5M	RG-316 DS	50 Ohms	SMA to TNC	Shielded	Female	50 cm		19.69 "	SMA Plug	3 GHz	Male	Copper	50 Ohms	Bulkhead - Front Side Nut	TNC Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount
Amphenol Custom Cable Q-3C04H000R060I	RG-316 DS	50 Ohms	SMA to TNC	Shielded	Female	1.5 m	5 ft	5 '	SMA Plug	3 GHz	Male	Copper	50 Ohms	Bulkhead - Front Side Nut	TNC Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount
Amphenol Custom Cable Q-3C04H000R.75M	RG-316 DS	50 Ohms	SMA to TNC	Shielded	Female	750 mm		29.53 "	SMA Plug	3 GHz	Male	Copper	50 Ohms	Bulkhead - Front Side Nut	TNC Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount
Amphenol Custom Cable Q-3C04H000R018I	RG-316 DS	50 Ohms	SMA to TNC	Shielded	Female				SMA Plug	3 GHz	Male	Copper	50 Ohms	Bulkhead - Front Side Nut	TNC Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount	457.2 mm	457.2 mm
Amphenol Custom Cable Q-3C04H000R024I	RG-316 DS	50 Ohms	SMA to TNC	Shielded	Female	609.6 mm		24 "	SMA Plug	3 GHz	Male	Copper	50 Ohms	Bulkhead - Front Side Nut	TNC Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount
Amphenol Custom Cable Q-3C04H000R072I	RG-316 DS	50 Ohms	SMA to TNC	Shielded	Female	1.8 m	6 ft	72 in	SMA Plug	3 GHz	Male	Copper	50 Ohms	Bulkhead - Front Side Nut	TNC Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount
Amphenol Custom Cable Q-3C04H000R048I	RG-316 DS	50 Ohms	SMA to TNC	Shielded	Female	1200 mm	4 ft	48 in	SMA Plug	3 GHz	Male	Copper	50 Ohms	Bulkhead - Front Side Nut	TNC Jack	Free Hanging (In-Line)	50 Ohms	Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 133.06
		25	$ 130.45
		50	$ 127.85
		100	$ 125.24
		250	$ 122.64

Description

General part information

Q-3C04H0 Series

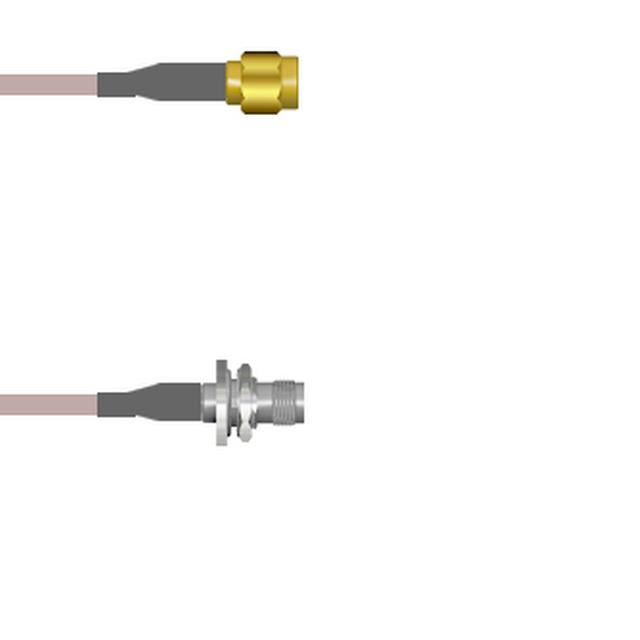

Cable Assembly Coaxial SMA to TNC RG-316 DS 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
