159208-5012

Active

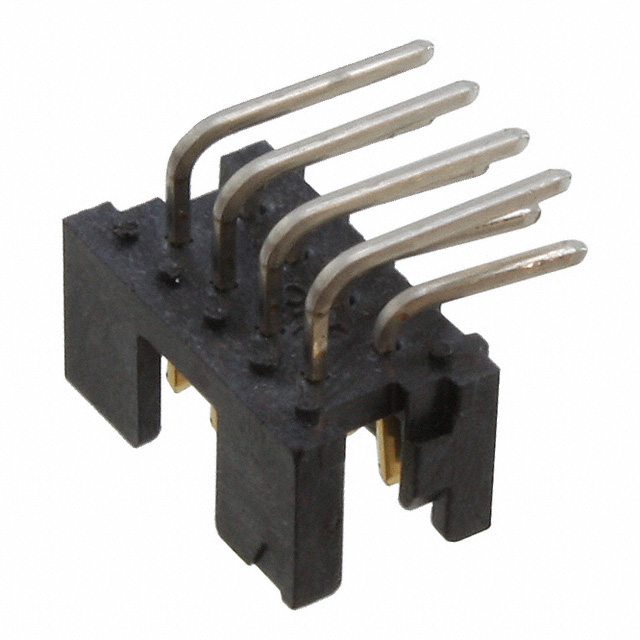

CONN HEADER R/A 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

159208-5012

Active

CONN HEADER R/A 8POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

159208 Series

Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	159208-5012	159208 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.61 mm	3.61 mm
Contact Length - Mating	0.142 in	0.142 in
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	0.241 in	0.21 - 0.241 in
Insulation Height	6.13 mm	5.33 - 6.13 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	150 VDC	150 VDC

159208 Series

CONN HEADER VERT 8POS 2MM

Part	Contact Shape	Current Rating (Amps)	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Shrouding	Fastening Type	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Features	Row Spacing - Mating	Row Spacing - Mating	Termination	Insulation Color	Material Flammability Rating	Number of Positions Loaded	Contact Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Contact Finish - Mating	Style
3M 159208-6012	Square	1.25 A	150 VDC	0.079 in	2 mm	5.33 mm	0.21 in	15 µin	0.38 µm	Through Hole	3.61 mm	0.142 in	8	2.84 mm	0.112 in	Shrouded - 4 Wall	Push-Pull	Header	200 µin	5.08 µm	2	Keying Slot	0.079 in	2 mm	Solder	Black	UL94 V-0	All	Copper Alloy	Male Pin	105 ░C	-55 °C	Tin	Gold	Board to Cable/Wire
3M 159208-5012	Square	1.25 A	150 VDC	0.079 in	2 mm	6.13 mm	0.241 in	15 µin	0.38 µm	Through Hole, Right Angle	3.61 mm	0.142 in	8	2.84 mm	0.112 in	Shrouded - 4 Wall	Push-Pull	Header	200 µin	5.08 µm	2	Keying Slot	0.079 in	2 mm	Solder	Black	UL94 V-0	All	Copper Alloy	Male Pin	105 ░C	-55 °C	Tin	Gold	Board to Cable/Wire
3M 159208-6022	Square	1.25 A	150 VDC	0.079 in	2 mm	5.33 mm	0.21 in	15 µin	0.38 µm	Through Hole	3.61 mm	0.142 in	8	2.84 mm	0.112 in	Shrouded - 4 Wall	Detent Lock	Header	200 µin	5.08 µm	2		0.079 in	2 mm	Solder	Black	UL94 V-0	All	Copper Alloy	Male Pin	105 ░C	-55 °C	Tin	Gold	Board to Cable/Wire
