Q-2N00900081.5M

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2N00900081.5M

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2N00900081.5M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-2N0090 Series

Part	Cable Impedance	1st Connector Mounting Type	Length	Length	Length	1st Contact Gender	2nd Connector	1st Connector	Style	Cable Type	Frequency - Max [Max]	Color	Connector Impedance	Overall Impedance	Features	2nd Connector Mounting Type	2nd Contact Gender
Amphenol Custom Cable Q-2N00900082.5M	50 Ohms	Free Hanging (In-Line)	8.2 '	98.4 in	2.5 m	Female	N-Type Plug	BNC Jack	BNC to N-Type	RG-58	1 GHz	Black	50 Ohms	50 Ohms	Shielded	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2N0090008005F	50 Ohms	Free Hanging (In-Line)	5 ft	5 '	1.5 m	Female	N-Type Plug	BNC Jack	BNC to N-Type	RG-58	1 GHz	Black	50 Ohms	50 Ohms	Shielded	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2N00900081.5M	50 Ohms	Free Hanging (In-Line)	4.9 ft	59.1 in	1.5 m	Female	N-Type Plug	BNC Jack	BNC to N-Type	RG-58	1 GHz	Black	50 Ohms	50 Ohms	Shielded	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2N0090008003M	50 Ohms	Free Hanging (In-Line)	9.8 '	118.1 in	3 m	Female	N-Type Plug	BNC Jack	BNC to N-Type	RG-58	1 GHz	Black	50 Ohms	50 Ohms	Shielded	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2N0090008002F	50 Ohms	Free Hanging (In-Line)		24 "	609.6 mm	Female	N-Type Plug	BNC Jack	BNC to N-Type	RG-58	1 GHz	Black	50 Ohms	50 Ohms	Shielded	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2N0090008009F	50 Ohms	Free Hanging (In-Line)	9 ft	108 in	2.7 m	Female	N-Type Plug	BNC Jack	BNC to N-Type	RG-58	1 GHz	Black	50 Ohms	50 Ohms	Shielded	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2N0090008002M	50 Ohms	Free Hanging (In-Line)	6.6 ft	78.7 in	2 m	Female	N-Type Plug	BNC Jack	BNC to N-Type	RG-58	1 GHz	Black	50 Ohms	50 Ohms	Shielded	Free Hanging (In-Line)	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 69.03
		25	$ 67.69
		50	$ 66.34
		100	$ 64.99
		250	$ 63.64

Description

General part information

Q-2N0090 Series

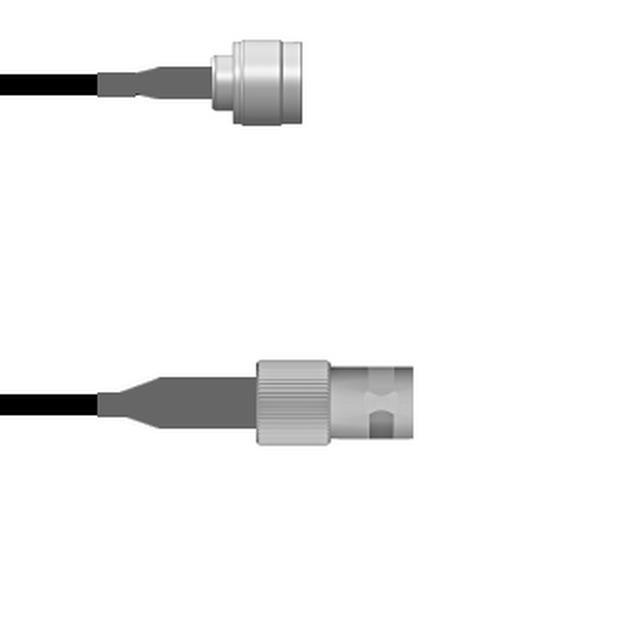

Cable Assembly Coaxial BNC to N-Type RG-58 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
