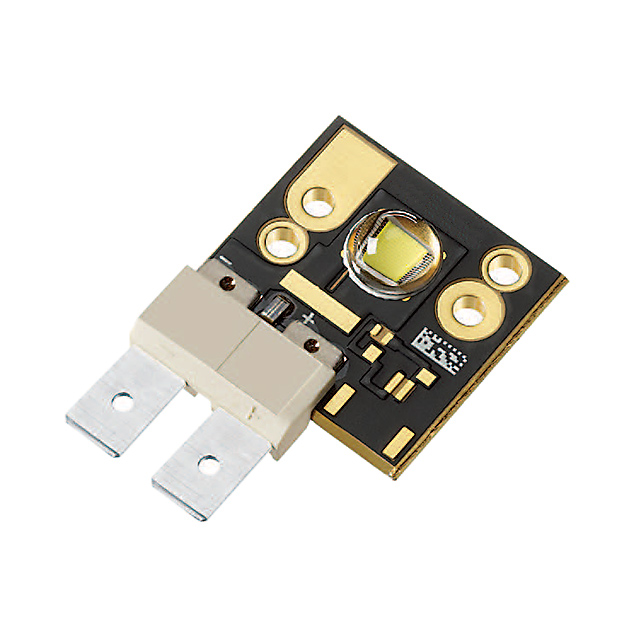

CST-90-WDLS-C13-GN150

Obsolete

Luminus Devices Inc.

LED MOD CST-90 COOL WH SQ 5700K

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED MOD CST-90 COOL WH SQ 5700K

Technical Specifications

Parameters and characteristics for this part

Specification	CST-90-WDLS-C13-GN150

CCT (K)	5700 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	70
Current - Max [Max]	13.5 A
Current - Test	3.15 A
Features	With Connector
Height [z]	7.9 mm
Lens Type	Domed
Light Emitting Surface (LES) [diameter]	8 mm
Lumens/Watt @ Current - Test	90 lm/W
Luminous Flux @ Current/Temperature	925 lm
Size / Dimension [x]	42 mm
Size / Dimension [y]	28 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	3.25 V

Part	Lens Type	Size / Dimension [x]	Size / Dimension [y]	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Features	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CCT (K)	Height [z]	Configuration	Voltage - Forward (Vf) (Typ)	Type	CRI (Color Rendering Index)	Color	Temperature - Test	Current - Test	Current - Max [Max]	Viewing Angle	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
Luminus Devices Inc. CST-90-W65S-C12-GN102	Domed	28 mm	42 mm	3 mm	3 mm	With Connector	925 lm	90 lm/W	6500 K	5.61 mm	Rectangle	3.25 V	LED Module	70	Cool White	40 °C	3.15 A	13.5 A	95 °
Luminus Devices Inc. CST-90-WDLS-C13-GN150	Domed	42 mm	28 mm			With Connector	925 lm	90 lm/W	5700 K	7.9 mm	Square	3.25 V	LED Module	70	Cool White		3.15 A	13.5 A		8 mm
Luminus Devices Inc. CST-90-W40S-C12-GL500	Domed	42 mm	28 mm			With Connector	650 lm	63 lm/W	4000 K	7.9 mm	Square	3.25 V	LED Module	70	Neutral White		3.15 A	13.5 A		8 mm	700 lm	600 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module CST-90 White, Cool Square

Technical documentation and resources

No documents available
