135536-1

Active

TE Connectivity AMP Connectors

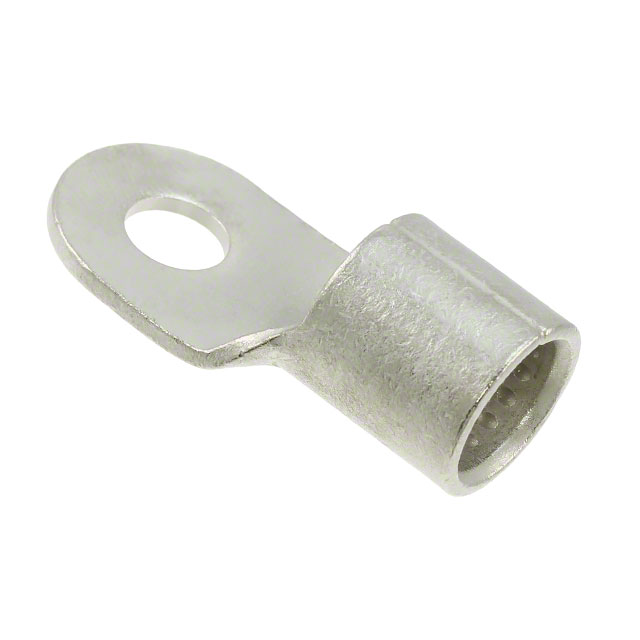

CONN RING D-SHAPE 3/0AWG #3/8

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING D-SHAPE 3/0AWG #3/8

Technical Specifications

Parameters and characteristics for this part

CONN RING D-SHAPE 3/0AWG #3/8

Part	Terminal Type	Mounting Type	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Insulation	Thickness	Thickness	Termination	Contact Finish	Contact Material
TE Connectivity AMP Connectors 135536-1	D-Shaped	Free Hanging (In-Line)	3/8 Stud	1 in	25.4 mm	1.642 in	41.7 mm	Non-Insulated	2.31 mm	0.091 in	Crimp	Nickel	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.88

General part information

Ring Terminal Connector 3/8 Stud D-Shaped 3/0 AWG Crimp

Technical documentation and resources

No documents available
