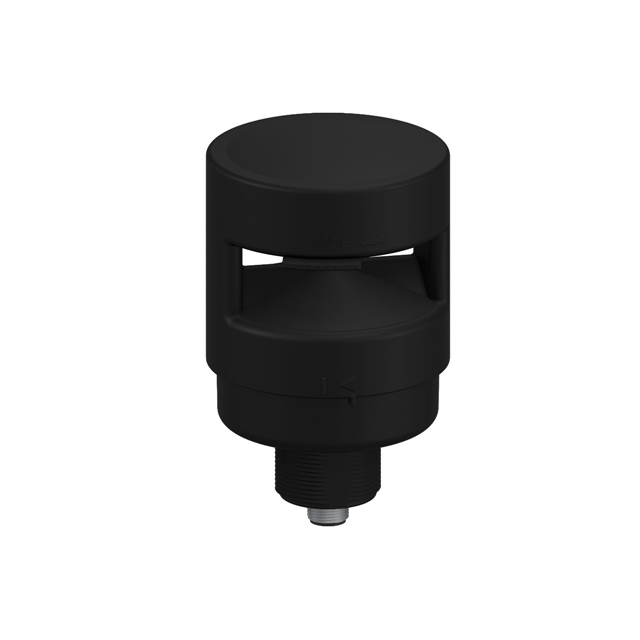

TL70AQ

Active

BANNER ENGINEERING

COMPLETE UNIT LED STEADY

Search across all available documentation for this part.

Active

BANNER ENGINEERING

COMPLETE UNIT LED STEADY

Technical Specifications

Parameters and characteristics for this part

Specification	TL70AQ

Features	Alarm
Function - Audible	Multiple
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Stacks	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Termination Style	Connector
Type	Acoustic Element
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

Part	Number of Stacks	Function - Lighting	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Termination Style	Light Color	Features	Type	Voltage - Supply	Function - Audible	Number of Positions/Contacts	Connector Type	Cable Type	Color	Shielding	Mounting Type	Length	Length
BANNER ENGINEERING TL70WQ	1	Steady	12 V	30 VDC	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	M12	White	Dip Switch	Complete Unit
BANNER ENGINEERING TL70YQ	1	Steady	12 V	30 VDC	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	M12	Yellow	Dip Switch	Complete Unit
BANNER ENGINEERING TL50AQ	1	Rotating	12 V	30 VDC	-20 C	50 °C	IP50	Wire Leads	Blue Green Red	Alarm	Complete Unit
BANNER ENGINEERING TL50YQ	1	Steady	18 V	30 VDC	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Wire Leads	Yellow		Complete Unit	24 VAC
BANNER ENGINEERING TL50HG	1	Steady	18 VAC	24 VAC	-40 °C	50 °C	IP67 - Dust Tight Waterproof	Wire Leads	Green		Complete Unit	30 VDC
BANNER ENGINEERING TL50ZB	1	Steady	100 VAC	240 VAC	-40 °C	50 °C	IP67 - Dust Tight Waterproof	Wire Leads			Complete Unit
BANNER ENGINEERING TL50B	1	Steady	18 VAC	24 VAC	-40 °C	50 °C	IP67 - Dust Tight Waterproof	Wire Leads			Complete Unit	30 VDC
BANNER ENGINEERING SA-F12											Mounting Base
BANNER ENGINEERING TL70AQ	1		12 V	30 VDC	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Connector		Alarm	Acoustic Element		Multiple
BANNER ENGINEERING STP50										Molded Plugs				8p8c (RJ45 Ethernet)	Plug to Plug	Round Cable	Black	Shielded	Free Hanging (In-Line)	50.84 ft	15.5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 141.00
Newark	Each	1	$ 141.00

General part information

Stack Light Acoustic Element Alarm Connector
