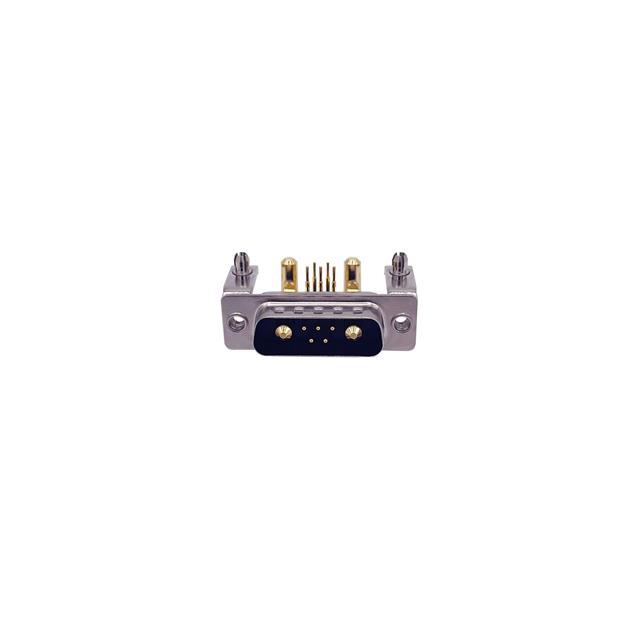

684M7W2103L621

Active

MH Connectors

COMBO D-SUB CONN, PLUG, DA-7W2, TH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

COMBO D-SUB CONN, PLUG, DA-7W2, TH ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	684M7W2103L621

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Material Flammability Rating	Shell Material, Finish	Current Rating (Amps)	Voltage Rating	Features	Connector Style	Backset Spacing	Backset Spacing	Contact Finish Thickness	Mounting Type	Color	Number of Rows	Dielectric Material	Number of Positions [custom]	Number of Positions [custom]	Flange Feature	Contact Material	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish	Connector Type
MH Connectors 684M7W2103L621	Solder	UL94 V-0	Nickel Plated Steel	5 A 40 A	250 VDC	Board Lock Grounding Indents Mounting Brackets	Combo D-Sub	9.4 mm	0.37 in	Flash	Board Edge Right Angle Through Hole	Black	2	Polybutylene Terephthalate (PBT)	7	2	Housing/Shell (4-40)	Copper Alloy	2 (DA A) - 7W2	-55 °C	125 °C	Signal and Power	Gold	Male Pins Plug
MH Connectors 684M7W2203L621	Solder	UL94 V-0	Nickel Plated Steel	5 A 40 A	250 VDC	Board Lock Mounting Brackets	Combo D-Sub	9.4 mm	0.37 in	Flash	Board Edge Right Angle Through Hole	Black	2	Polybutylene Terephthalate (PBT)	7	2	Housing/Shell (4-40)	Copper Alloy	2 (DA A) - 7W2	-55 °C	125 °C	Signal and Power	Gold	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
