MUSBE15104

Active

Amphenol ICC (Commercial Products)

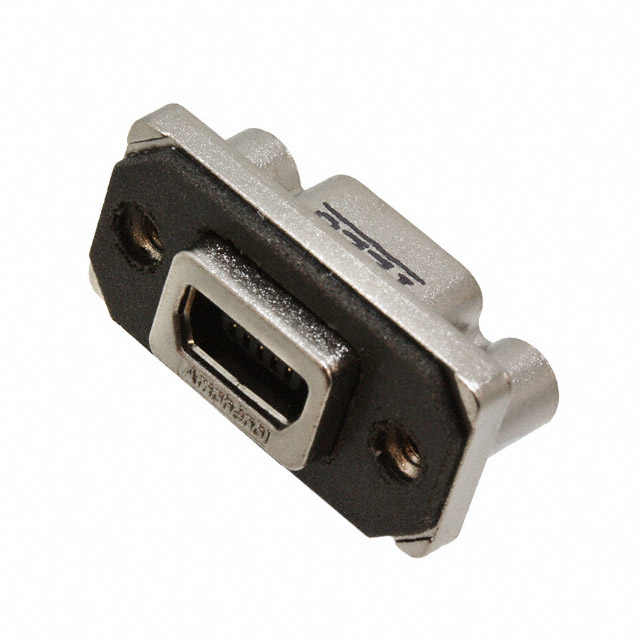

CONN RCPT USB2.0 MINI AB PCB R/A

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN RCPT USB2.0 MINI AB PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	MUSBE15104

Contact Finish	Gold
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	5000
Mounting Feature	Flange, Horizontal
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder

Part	Mounting Feature	Ingress Protection	Shielding	Specifications	Termination	Insulation Color	Number of Contacts	Mating Cycles	Gender	Number of Ports	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shell/Shielding Material	Contact Finish
Amphenol ICC (Commercial Products) MUSBE15104	Flange Horizontal	IP67 - Dust Tight Waterproof	Shielded	USB 2.0	Solder	Black	5	5000	Receptacle	1	Panel Mount Right Angle Through Hole	-40 °C	105 ░C	UL94 V-0	Copper Alloy	Gold
Amphenol ICC (Commercial Products) MUSBE15130	Flange Horizontal	IP67 - Dust Tight Waterproof	Shielded	USB 2.0	Solder	Black	5	5000	Receptacle	1	Panel Mount Right Angle Through Hole	-40 °C	105 ░C	UL94 V-0	Copper Alloy	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - mini AB USB 2.0 Receptacle Connector 5 Position Panel Mount, Through Hole, Right Angle
