Q-2J03F000H048i

Active

Amphenol Custom Cable

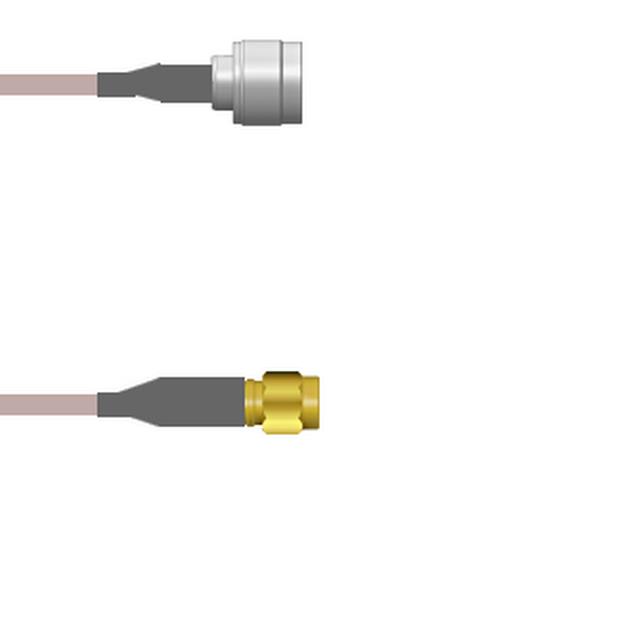

CBL ASSY SMA-NTYPE PLUG-PLUG 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2J03F000H048i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-PLUG 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2J03F000H048i

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2J03F0 Series

Part	Style	Connector Impedance	2nd Connector	Cable Type	2nd Connector Mounting Type	1st Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	Length	Length	Cable Impedance	Features	Color	2nd Contact Gender	1st Connector	Overall Impedance	Length
Amphenol Custom Cable Q-2J03F000H0.5M	SMA to N-Type	50 Ohms	N-Type Plug	RG-142	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	Male	50 cm	19.69 "	50 Ohms	Shielded	Copper	Male	SMA Plug	50 Ohms
Amphenol Custom Cable Q-2J03F000H005F	SMA to N-Type	50 Ohms	N-Type Plug	RG-142	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	Male	1.5 m	5 '	50 Ohms	Shielded	Copper	Male	SMA Plug	50 Ohms	5 ft
Amphenol Custom Cable Q-2J03F000H002M	SMA to N-Type	50 Ohms	N-Type Plug	RG-142	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	Male	2 m	78.7 in	50 Ohms	Shielded	Copper	Male	SMA Plug	50 Ohms	6.6 ft
Amphenol Custom Cable Q-2J03F000H036i	SMA to N-Type	50 Ohms	N-Type Plug	RG-142	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	Male	91.44 cm	36 in	50 Ohms	Shielded	Copper	Male	SMA Plug	50 Ohms
Amphenol Custom Cable Q-2J03F000H006i	SMA to N-Type	50 Ohms	N-Type Plug	RG-142	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	Male	152.4 mm	6 in	50 Ohms	Shielded	Copper	Male	SMA Plug	50 Ohms
Amphenol Custom Cable Q-2J03F000H009F	SMA to N-Type	50 Ohms	N-Type Plug	RG-142	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	Male	2.7 m	108 in	50 Ohms	Shielded	Copper	Male	SMA Plug	50 Ohms	9 ft
Amphenol Custom Cable Q-2J03F000H024i	SMA to N-Type	50 Ohms	N-Type Plug	RG-142	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	Male	609.6 mm	24 "	50 Ohms	Shielded	Copper	Male	SMA Plug	50 Ohms
Amphenol Custom Cable Q-2J03F000H003M	SMA to N-Type	50 Ohms	N-Type Plug	RG-142	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	Male	3 m	118.1 in	50 Ohms	Shielded	Copper	Male	SMA Plug	50 Ohms	9.8 '
Amphenol Custom Cable Q-2J03F000H048i	SMA to N-Type	50 Ohms	N-Type Plug	RG-142	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	Male	1200 mm	48 in	50 Ohms	Shielded	Copper	Male	SMA Plug	50 Ohms	4 ft
Amphenol Custom Cable Q-2J03F000H002F	SMA to N-Type	50 Ohms	N-Type Plug	RG-142	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	Male	609.6 mm	24 "	50 Ohms	Shielded	Copper	Male	SMA Plug	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 102.73
		25	$ 100.70
		50	$ 98.68
		100	$ 96.65
		250	$ 94.63

Description

General part information

Q-2J03F0 Series

Cable Assembly Coaxial SMA to N-Type RG-142 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
