QME48T20120-NGA0G

Active

Bel Power Solutions

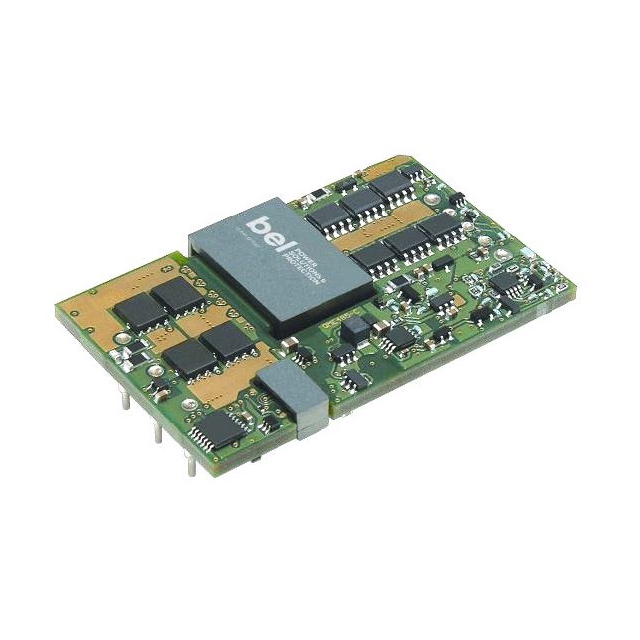

MODULE DC-DC 48VIN 1-OUT 12V 20A 8-PIN QUARTER-BRICK

Search across all available documentation for this part.

Active

Bel Power Solutions

MODULE DC-DC 48VIN 1-OUT 12V 20A 8-PIN QUARTER-BRICK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QME48T20120-NGA0G	QME48T20120 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	20 A	20 A
Efficiency	93 %	93 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	OCP, UVLO, OTP, OVP, Remote On/Off, SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	1/4 Brick, 8-DIP Module	1/4 Brick, 8-DIP Module
Power (Watts)	240 W	240 W
Size / Dimension [x]	2.3 in	2.28 - 2.3 in
Size / Dimension [x]	58.4 mm	57.9 - 58.4 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	12.2 mm	12.2 mm
Size / Dimension [z]	0.48 in	0.48 in
Type	Isolated Module	Intermediate Bus Converter, Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2000 V	2000 V
Voltage - Output 1	12 V	12 V

DC DC CONVERTER 12V 240W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input (Max) [Max]	Type	Power (Watts)	Package / Case	Voltage - Output 1	Number of Outputs	Applications	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Efficiency	Voltage - Isolation	Voltage - Input (Min) [Min]	Control Features
Bel Power Solutions QME48T20120-NGB0G	85 °C	-40 °C	OCP, OTP, OVP, UVLO	75 V	Intermediate Bus Converter	240 W	1/4 Brick, 8-DIP Module	12 V	1	ITE (Commercial)	Through Hole	12.2 mm	0.48 in	1.45 in	36.8 mm	2.3 in	58.4 mm	20 A	93 %	2000 V	36 V
Bel Power Solutions QME48T20120-NGB0	85 °C	-40 °C	OCP, OTP, OVP, Remote On/Off, UVLO	75 V	Intermediate Bus Converter	240 W	1/4 Brick, 8-DIP Module	12 V	1	ITE (Commercial)	Through Hole	12.2 mm	0.48 in	1.45 in	36.8 mm	2.28 in	57.9 mm	20 A	93 %	2000 V	36 V	Active Low, Enable
Bel Power Solutions QME48T20120-PGA0G	85 °C	-40 °C	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	75 V	Isolated Module	240 W	1/4 Brick, 8-DIP Module	12 V	1	ITE (Commercial)	Through Hole	12.2 mm	0.48 in	1.45 in	36.8 mm	2.3 in	58.4 mm	20 A	93 %	2000 V	36 V	Active High, Enable
Bel Power Solutions QME48T20120-NGA0G	85 °C	-40 °C	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	75 V	Isolated Module	240 W	1/4 Brick, 8-DIP Module	12 V	1	ITE (Commercial)	Through Hole	12.2 mm	0.48 in	1.45 in	36.8 mm	2.3 in	58.4 mm	20 A	93 %	2000 V	36 V	Active Low, Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	360	$ 76.57

General part information

Isolated Module DC DC Converter 1 Output 12V 20A 36V - 75V Input

Technical documentation and resources

No documents available
