QME48T20120-NGB0G

Active

Bel Power Solutions

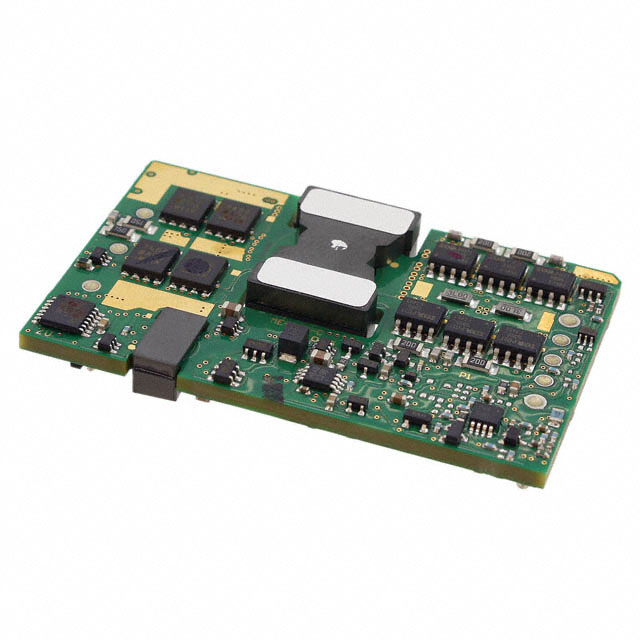

DC DC CONVERTER 12V 240W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 12V 240W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Intermediate Bus Converter DC DC Converter 1 Output 12V 20A 36V - 75V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	QME48T20120-NGB0G	QME48T20120 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	-	Active Low, Enable, Active High
Current - Output (Max) [Max]	20 A	20 A
Efficiency	93 %	93 %
Features	OCP, UVLO, OTP, OVP	OCP, UVLO, OTP, OVP, Remote On/Off, SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	1/4 Brick, 8-DIP Module	1/4 Brick, 8-DIP Module
Power (Watts)	240 W	240 W
Size / Dimension [x]	2.3 in	2.28 - 2.3 in
Size / Dimension [x]	58.4 mm	57.9 - 58.4 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	12.2 mm	12.2 mm
Size / Dimension [z]	0.48 in	0.48 in
Type	Intermediate Bus Converter	Intermediate Bus Converter, Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2000 V	2000 V
Voltage - Output 1	12 V	12 V

DC DC CONVERTER 12V 240W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input (Max) [Max]	Type	Power (Watts)	Package / Case	Voltage - Output 1	Number of Outputs	Applications	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Efficiency	Voltage - Isolation	Voltage - Input (Min) [Min]	Control Features
Bel Power Solutions QME48T20120-NGB0G	85 °C	-40 °C	OCP, OTP, OVP, UVLO	75 V	Intermediate Bus Converter	240 W	1/4 Brick, 8-DIP Module	12 V	1	ITE (Commercial)	Through Hole	12.2 mm	0.48 in	1.45 in	36.8 mm	2.3 in	58.4 mm	20 A	93 %	2000 V	36 V
Bel Power Solutions QME48T20120-NGB0	85 °C	-40 °C	OCP, OTP, OVP, Remote On/Off, UVLO	75 V	Intermediate Bus Converter	240 W	1/4 Brick, 8-DIP Module	12 V	1	ITE (Commercial)	Through Hole	12.2 mm	0.48 in	1.45 in	36.8 mm	2.28 in	57.9 mm	20 A	93 %	2000 V	36 V	Active Low, Enable
Bel Power Solutions QME48T20120-PGA0G	85 °C	-40 °C	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	75 V	Isolated Module	240 W	1/4 Brick, 8-DIP Module	12 V	1	ITE (Commercial)	Through Hole	12.2 mm	0.48 in	1.45 in	36.8 mm	2.3 in	58.4 mm	20 A	93 %	2000 V	36 V	Active High, Enable
Bel Power Solutions QME48T20120-NGA0G	85 °C	-40 °C	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	75 V	Isolated Module	240 W	1/4 Brick, 8-DIP Module	12 V	1	ITE (Commercial)	Through Hole	12.2 mm	0.48 in	1.45 in	36.8 mm	2.3 in	58.4 mm	20 A	93 %	2000 V	36 V	Active Low, Enable
