EVALAUDIOMA12040PTOBO1

Active

Infineon Technologies

EVALUATION BOARD - AUDIO BOARD USING HIGHLY POWER EFFICIENT DIGITAL-INPUT MULTILEVEL MERUS™ CLASS D AMPLIFIER IC MA12040P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Operating Instructions EN

EVALAUDIOMA12040PTOBO1

Active

Infineon Technologies

EVALUATION BOARD - AUDIO BOARD USING HIGHLY POWER EFFICIENT DIGITAL-INPUT MULTILEVEL MERUS™ CLASS D AMPLIFIER IC MA12040P

Deep-Dive with AI

DocumentsDatasheet Operating Instructions EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVALAUDIOMA12040PTOBO1

Board Type	Fully Populated
Max Output Power x Channels @ Load	40 W, 2 channels
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	MA12040P
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	5.5 V

AUDIOMA12040P Series

Part	Board Type	Supplied Contents	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Max Output Power x Channels @ Load
Infineon Technologies EVALAUDIOMA12040PTOBO1	Fully Populated	Board(s)	MA12040P	18 V	5.5 V	2-Channel (Stereo)	2 channels 40 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 81.41
Digikey	Box	1	$ 230.44
Newark	Each	1	$ 249.64

Description

General part information

AUDIOMA12040P Series

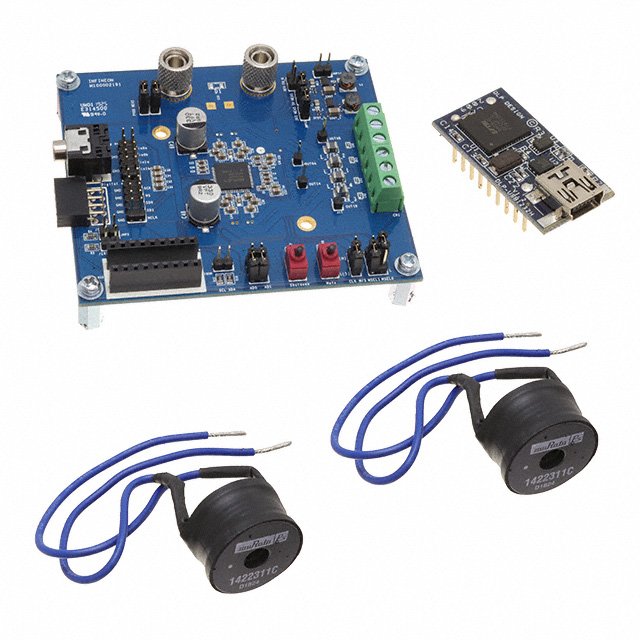

This audio evaluation kit contains all hardware and software elements that are needed to evaluate the highly power efficient MERUS™digital input multilevel class D amplifier IC2x40 W (MA12040P). The IC is specifically targeted for high performance filter-less and heatsink-free audio applications.
