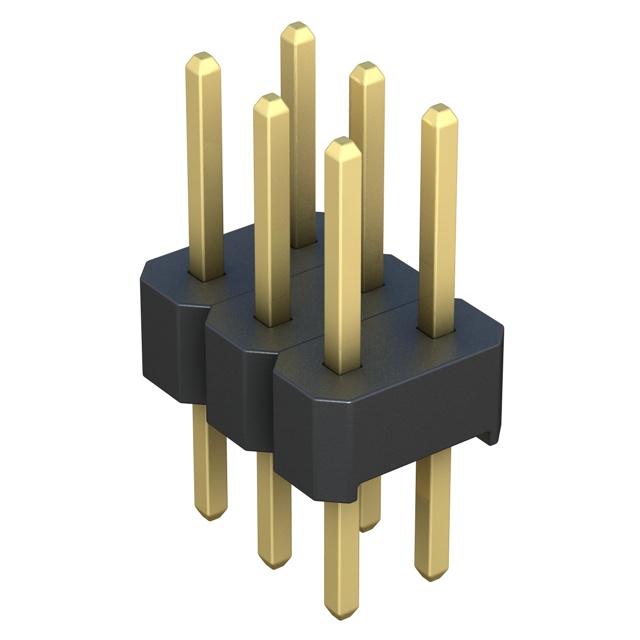

PRPN032PAEN

Obsolete

CONN HEADER VERT 6POS 2MM

Obsolete

CONN HEADER VERT 6POS 2MM

Description

General part information

Connector Header Through Hole 6 position 0.079" (2.00mm)

Parameters and characteristics for this part

Specification	PRPN032PAEN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Post (string_set)	Flash
Contact Length - Mating	0.157 in
Contact Length - Post	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Overall Contact Length	0.346 in
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

Part	Shrouding	Operating Temperature (Min)	Operating Temperature (Max)	Contact Length - Mating	Connector Type	Number of Positions	Contact Shape	Contact Material	Current Rating	Contact Finish - Post	Number of Rows	Termination	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Mating	Row Spacing - Mating	Style	Insulation Material	Insulation Height	Fastening Type	Pitch - Mating	Material Flammability Rating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Overall Contact Length	Contact Length - Post	Features
Sullins Connector Solutions PRPN032MAMS	Unshrouded	-40 °C	105 °C	0.157 in	Header	6	Square	Brass	1 A	Gold	2	Solder	All	Surface Mount	Flash	Male Pin	Gold	0.079 in	Board Board or Cable	Polyester	0.059 in	Push-Pull	0.079 in	UL94 V-0	Black	Flash	Flash
Sullins Connector Solutions PRPN032PAEN	Unshrouded	-40 °C	105 °C	0.157 in	Header	6	Square	Brass	1 A	Gold	2	Solder	All	Through Hole	Flash	Male Pin	Gold	0.079 in	Board Board or Cable	Polyester	0.079 in	Push-Pull	0.079 in	UL94 V-0	Black	Flash	Flash	0.346 in	0.11 in
Sullins Connector Solutions PRPN032MAMP	Unshrouded	-40 °C	105 °C	0.157 in	Header	6	Square	Brass	1 A	Gold	2	Solder	All	Surface Mount	Flash	Male Pin	Gold	0.079 in	Board Board or Cable	Polyester	0.059 in	Push-Pull	0.079 in	UL94 V-0	Black	Flash	Flash			Board Guide
