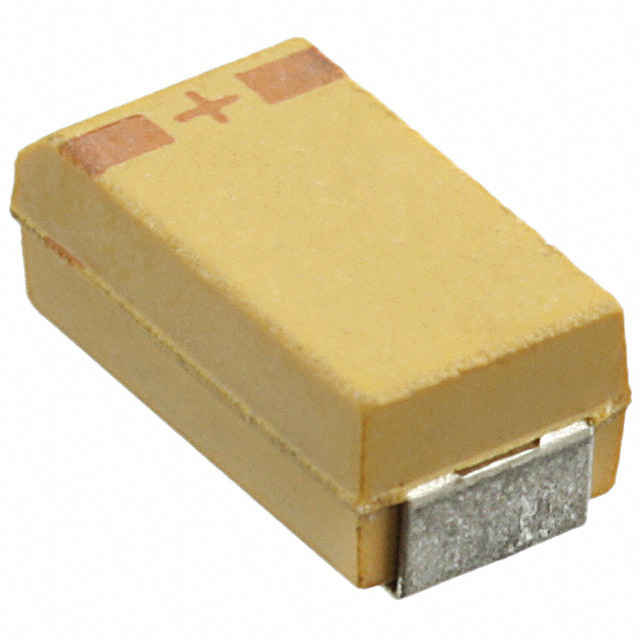

T493C476K016CB6420

Active

KEMET

CAP TANT 47UF 10% 16V 2312

Search across all available documentation for this part.

Active

KEMET

CAP TANT 47UF 10% 16V 2312

Technical Specifications

Parameters and characteristics for this part

Specification	T493C476K016CB6420

Capacitance	47 µF
ESR (Equivalent Series Resistance)	500 mOhms
Failure Rate	C (0.01%)
Features	High Reliability
Height - Seated (Max) [Max] [z]	2.5 mm
Height - Seated (Max) [Max] [z]	0.098 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Ratings	COTS
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	10 %
Type	Molded
Voltage - Rated	16 V

Part	Mounting Type	Ratings	Package / Case	Package / Case	Type	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Capacitance	Tolerance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Failure Rate
KEMET T493C106K035AH6120	Surface Mount	COTS	6032 Metric	2312	Molded	2000 Hrs	1.6 Ohm	10 µF	10 %	35 V	-55 °C	125 °C	3.2 mm	6 mm	0.236 in	0.126 "	High Reliability
KEMET T493C476K016CB6420	Surface Mount	COTS	6032 Metric	2312	Molded	2000 Hrs	500 mOhms	47 µF	10 %	16 V	-55 °C	125 °C	3.2 mm	6 mm	0.236 in	0.126 "	High Reliability	2.5 mm	0.098 in	C (0.01%)
KEMET T493C105K050AH6120	Surface Mount	COTS	6032 Metric	2312	Molded	2000 Hrs	5.5 Ohm	1 µF	10 %	50 VDC	-55 °C	125 °C	3.2 mm	6 mm	0.236 in	0.126 "	High Reliability
KEMET T493C476K016BH6410	Surface Mount	COTS	6032 Metric	2312	Molded	2000 Hrs	1.2 Ohm	47 µF	10 %	16 V	-55 °C	125 °C	3.2 mm	6 mm	0.236 in	0.126 "	High Reliability			B (0.1%)
KEMET T493C106M035BH6420	Surface Mount	COTS	6032 Metric	2312	Molded	2000 Hrs	1200 mOhm	10 µF	20 %	35 V	-55 °C	125 °C	3.2 mm	6 mm	0.236 in	0.126 "	High Reliability			B (0.1%)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 µF Molded Tantalum Capacitors 16 V 2312 (6032 Metric) 500mOhm
