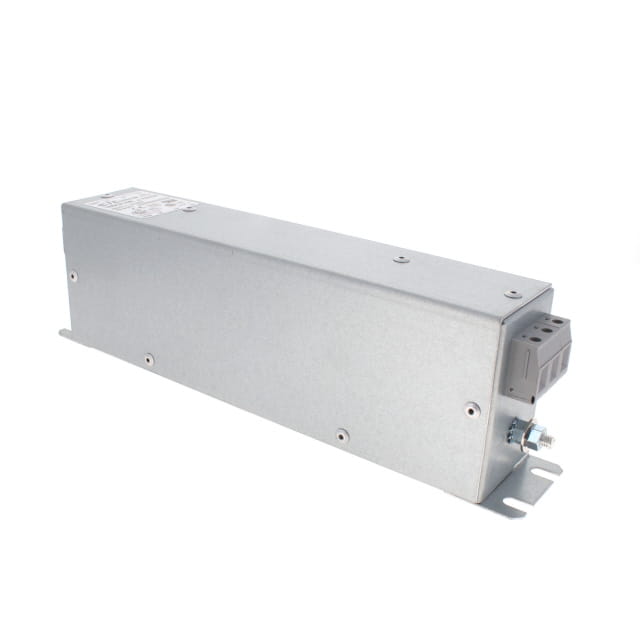

16BCF10R

Active

TE Connectivity Corcom Filters

LINE FILTER 16A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 16A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	16BCF10R

Applications	General Purpose
Approval Agency	VDE, CSA, UR
Configuration	Two Stage
Current	16 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	2.01 mH
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Phase)	480 V

LINE FILTER 16A CHASSIS MOUNT

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Termination Style	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current	Inductance	Applications	Approval Agency	Voltage - Rated AC (Phase to Phase)	Filter Type	Mounting Type
TE Connectivity Corcom Filters 16BCF10R	60 Hz	50 Hz	Two Stage	Terminal Block	-10 °C	50 °C	16 A	2.01 mH	General Purpose	CSA, UR, VDE	480 V	Three Phase (Delta)	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 130.66

General part information

Three Phase (Delta) EMC/EMI Line Filter 16 A 50/60Hz Two Stage Terminal Block
