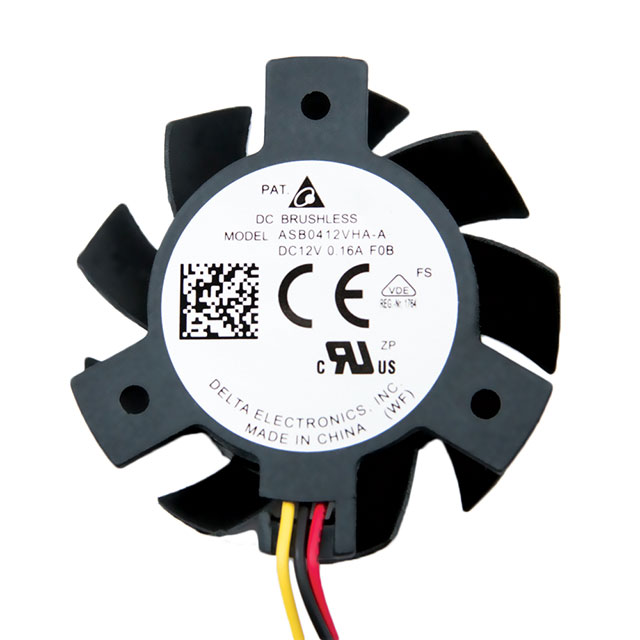

ASB0412VHA-AF0B

Obsolete

Delta Electronics

FAN AXL FRAMELSS 38X10.5MM 12VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

ASB0412VHA-AF0B

Obsolete

Delta Electronics

FAN AXL FRAMELSS 38X10.5MM 12VDC

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ASB0412VHA-AF0B

Air Flow	3.1 CFM
Air Flow	0.087 m³/min
Approval Agency	CE, cURus, VDE
Bearing Type	Sleeve
Current Rating (Amps)	100 mA
Fan Type	Frameless, Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Noise	28 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.2 W
RPM	4800 RPM
Size / Dimension [diameter]	38 mm
Static Pressure	0.116 in H2O
Static Pressure	28.8 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	5 VDC
Weight	11.34 g
Weight	0.025 lb
Width [x]	10.5 mm

ASB0412 Series

Part	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Bearing Type	Current Rating (Amps)	Noise	Lifetime @ Temp.	Termination	Voltage - Rated	Material - Blade	Fan Type	Weight	Weight	RPM	Features	Air Flow	Air Flow	Width [x]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Static Pressure	Static Pressure	Power (Watts)	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Material - Frame	Operating Temperature [Max]
Delta Electronics ASB0412VHA-AF0B	5 VDC	13.2 VDC	CE cURus VDE	Sleeve	100 mA	28 dB	30000 Hrs	3 Wire Leads	12 VDC	Plastic	Frameless Tubeaxial	11.34 g	0.025 lb	4800 RPM	Locked Rotor Protection Speed Sensor (Tach)	3.1 CFM	0.087 m³/min	10.5 mm	38 mm	-10 °C	-10 °C	60 °C	60 °C	0.116 in H2O	28.8 Pa	1.2 W
Delta Electronics ASB0412VHA-AF00	7 V	13.8 VDC	CE CSA UL VDE	Sleeve		32.5 dB	30000 Hrs	3 Wire Leads	12 VDC	Plastic	Tubeaxial	13.61 g	0.03 lb	8000 RPM	Locked Rotor Protection Speed Sensor (Tach)	9.5 CFM	0.266 m³/min			-10 °C	-10 °C	70 °C	70 °C	0.253 in H2O	63 Pa		10 mm	40 mm	Square	40 mm	Plastic
Delta Electronics ASB0412SA-00	10.8 VDC	13.2 VDC		Sleeve	70 mA	33.5 dB(A)	80000 Hrs	3 Wire Leads	12 VDC	Plastic	Tubeaxial	13.61 g	0.03 lb	8000 RPM	Locked Rotor Protection Speed Sensor (Tach)	8.9 CFM	0.249 mł/min			-20 C	-20 °C	90 °C		0.233 in H2O	58 Pa	840 mW	10.4 mm	40 mm	Square	40 mm	Plastic	90 °C
Delta Electronics ASB0412HA-A	7 V	13.8 VDC	CE CSA UL VDE	Sleeve	50 mA	26 dB	30000 Hrs	2 Wire Leads	12 VDC	Plastic	Tubeaxial	13.61 g	0.03 lb	6000 RPM		6.9 CFM	0.193 m³/min			-10 °C	-10 °C	70 °C	70 °C	0.14 in H2O	34.9 Pa	600 mW	10 mm	40 mm	Square	40 mm	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ASB0412 Series

Fan Tubeaxial, Frameless 12VDC Round - 38mm Dia Sleeve 3.1 CFM (0.087m³/min) 3 Wire Leads
