Q-2F04J0008018i

Active

Amphenol Custom Cable

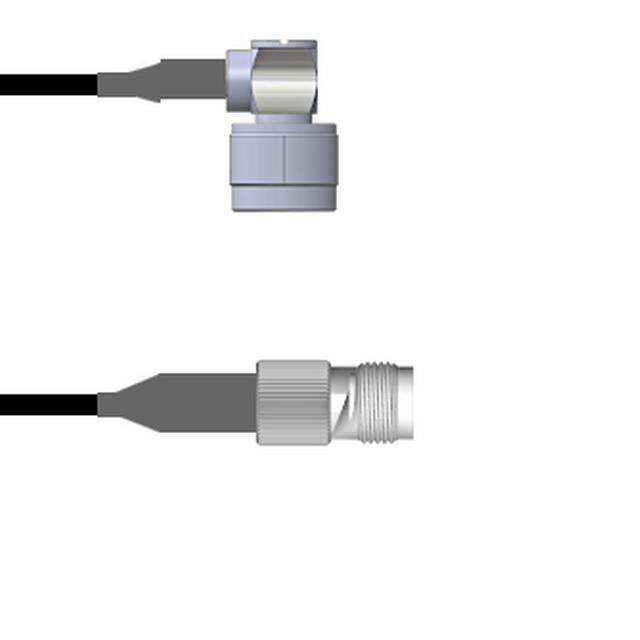

CBL ASSY NTYPE-TNC PLUG-JACK 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2F04J0008018i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-JACK 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2F04J0008018i

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms

Q-2F04J0 Series

Part	2nd Contact Gender	Length	Length	1st Connector	Color	2nd Connector	Overall Impedance	Cable Type	1st Contact Gender	Features	1st Connector Mounting Type	Frequency - Max [Max]	2nd Connector Mounting Type	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2F04J0008006i	Female	152.4 mm	6 in	N-Type Plug Right Angle	Black	TNC Jack	50 Ohms	RG-58	Male	Shielded	Free Hanging (In-Line)	11 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F04J0008002M	Female	2 m	78.7 in	N-Type Plug Right Angle	Black	TNC Jack	50 Ohms	RG-58	Male	Shielded	Free Hanging (In-Line)	11 GHz	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-2F04J00080.5M	Female	50 cm	19.69 "	N-Type Plug Right Angle	Black	TNC Jack	50 Ohms	RG-58	Male	Shielded	Free Hanging (In-Line)	11 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F04J0008036i	Female	91.44 cm	36 in	N-Type Plug Right Angle	Black	TNC Jack	50 Ohms	RG-58	Male	Shielded	Free Hanging (In-Line)	11 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F04J0008072i	Female	1.8 m	72 in	N-Type Plug Right Angle	Black	TNC Jack	50 Ohms	RG-58	Male	Shielded	Free Hanging (In-Line)	11 GHz	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-2F04J0008084i	Female	2.1 m	84 in	N-Type Plug Right Angle	Black	TNC Jack	50 Ohms	RG-58	Male	Shielded	Free Hanging (In-Line)	11 GHz	Free Hanging (In-Line)	7 ft
Amphenol Custom Cable Q-2F04J0008018i	Female			N-Type Plug Right Angle	Black	TNC Jack	50 Ohms	RG-58	Male	Shielded	Free Hanging (In-Line)	11 GHz	Free Hanging (In-Line)		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2F04J0008.25M	Female			N-Type Plug Right Angle	Black	TNC Jack	50 Ohms	RG-58	Male	Shielded	Free Hanging (In-Line)	11 GHz	Free Hanging (In-Line)			250 mm	9.843 "
Amphenol Custom Cable Q-2F04J00081.5M	Female	1.5 m	59.1 in	N-Type Plug Right Angle	Black	TNC Jack	50 Ohms	RG-58	Male	Shielded	Free Hanging (In-Line)	11 GHz	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-2F04J0008060i	Female	1.5 m	5 '	N-Type Plug Right Angle	Black	TNC Jack	50 Ohms	RG-58	Male	Shielded	Free Hanging (In-Line)	11 GHz	Free Hanging (In-Line)	5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 66.86
		25	$ 65.58
		50	$ 64.29
		100	$ 63.01
		250	$ 61.72

Description

General part information

Q-2F04J0 Series

Cable Assembly Coaxial N-Type to TNC RG-58 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
