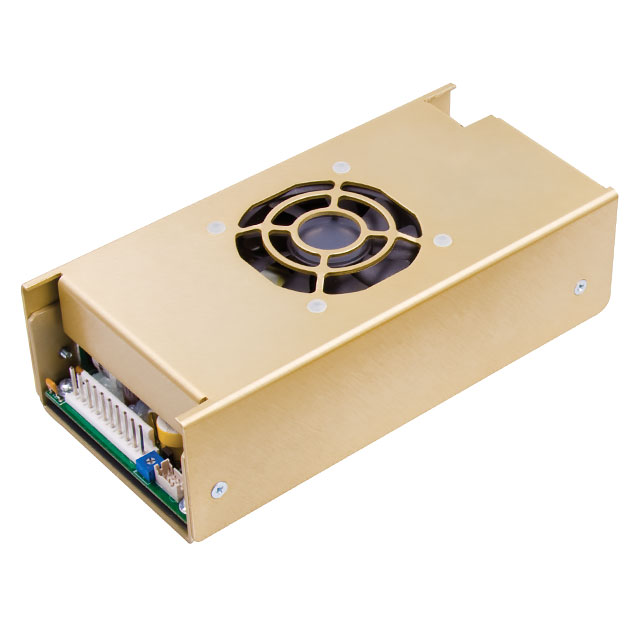

MFA350PS48-STF

Active

XP POWER

AC/DC CONVERTER 48V 350W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MFA350PS48-STF

Active

XP POWER

AC/DC CONVERTER 48V 350W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MFA350PS48-STF

Applications	ITE (Commercial)
Approval Agency	CE, CB
Current - Output 1	7.3 A
Efficiency	88 %
Features	Hot Swappable, Adjustable Output, Standby Output, Load Sharing, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	364 W, 350 W
Size / Dimension [x]	6.8 "
Size / Dimension [x]	172.7 mm
Size / Dimension [y]	3.33 in
Size / Dimension [y]	84.5 mm
Size / Dimension [z]	2.8 "
Size / Dimension [z]	52.8 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

MFA350 Series

Part	Type	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Features	Applications	Approval Agency	Efficiency	Standard Number	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output 1	Voltage - Output 1
XP POWER MFA350PS24	Open Frame	350 W	361 W	6.8 "	81.3 mm	38.1 mm	3.2 in	172.7 mm	1.5 "	1	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	ITE (Commercial)	CB CE	87 %	62368-1	Chassis Mount	-10 °C	70 °C	3000 V	14.5 A	24 V
XP POWER MFA350PS48	Open Frame	350 W 364 W		6.8 "	81.3 mm	38.1 mm	3.2 in	172.7 mm	1.5 "	1	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	ITE (Commercial)	CB CE	88 %	62368-1	Chassis Mount	-10 °C	70 °C	3000 V	7.3 A	48 V
XP POWER MFA350PS48-STF	Enclosed	350 W 364 W		6.8 "	84.5 mm	52.8 mm	3.33 in	172.7 mm	2.8 "	1	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	ITE (Commercial)	CB CE	88 %	62368-1	Chassis Mount	-10 °C	70 °C	3000 V	7.3 A	48 V
XP POWER MFA350PS24-STF	Enclosed	350 W	361 W	6.8 "	84.5 mm	52.8 mm	3.33 in	172.7 mm	2.8 "	1	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	ITE (Commercial)	CB CE	87 %	62368-1	Chassis Mount	-10 °C	70 °C	3000 V	14.5 A	24 V
XP POWER MFA350PS12-SEF	Enclosed	350 W	361 W	8.2 "	84.5 mm	44.5 mm	3.33 in	208.3 mm	1.75 "	1	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	ITE (Commercial)	CB CE	86 %	62368-1	Chassis Mount	-10 °C	70 °C	3000 V	29 A	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 300.80

Description

General part information

MFA350 Series

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
