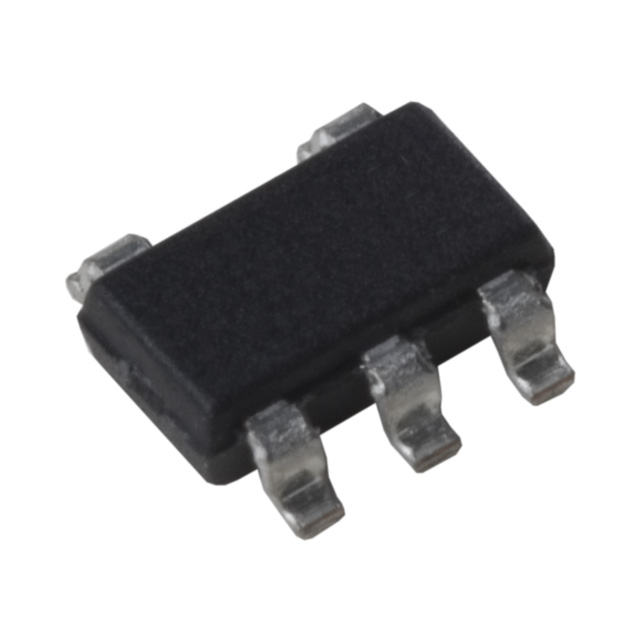

MIC2774L-46YM5-TR

Active

Microchip Technology

DUAL VOLTAGE SUPERVISOR WITH 0.3V AND 4.68V THRESHOLDS, ACTIVE-LOW PUSH-PULL OUT 5 SOT-23 T/R ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

MIC2774L-46YM5-TR

Active

Microchip Technology

DUAL VOLTAGE SUPERVISOR WITH 0.3V AND 4.68V THRESHOLDS, ACTIVE-LOW PUSH-PULL OUT 5 SOT-23 T/R ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MIC2774L-46YM5-TR

Mounting Type	Surface Mount
Number of Voltages Monitored	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Complementary
Package / Case	SC-74A, SOT-753
Reset	Active Low
Reset Timeout [Min]	140 ms
Supplier Device Package	SOT-23-5
Type	Multi-Voltage Supervisor
Voltage - Threshold	Adj
Voltage - Threshold	4.68 V

MIC2774 Series

Part	Supplier Device Package	Reset Timeout [Min]	Output	Mounting Type	Type	Package / Case	Number of Voltages Monitored	Reset	Voltage - Threshold	Voltage - Threshold	Operating Temperature [Max]	Operating Temperature [Min]
Microchip Technology MIC2774H-44BM5-TR	SOT-23-5	140 ms	Complementary	Surface Mount	Multi-Voltage Supervisor	SC-74A SOT-753	2	Active High	4.43 V	Adj	85 °C	-40 °C
Microchip Technology MIC2774N-25YM5-TR	SOT-23-5	140 ms	Open Drain or Open Collector	Surface Mount	Multi-Voltage Supervisor	SC-74A SOT-753	2	Active Low	2.53 V		85 °C	-40 °C
Microchip Technology MIC2774H-26BM5-TR	SOT-23-5	140 ms	Complementary	Surface Mount	Multi-Voltage Supervisor	SC-74A SOT-753	2	Active High	2.67 V		85 °C	-40 °C
Microchip Technology MIC2774H-46BM5	SOT-23-5	140 ms	Complementary	Surface Mount	Multi-Voltage Supervisor	SC-74A SOT-753	2	Active High	4.68 V	Adj	85 °C	-40 °C
Microchip Technology MIC2774N-46BM5-TR	SOT-23-5	140 ms	Open Drain or Open Collector	Surface Mount	Multi-Voltage Supervisor	SC-74A SOT-753	2	Active Low	4.68 V	Adj	85 °C	-40 °C
Microchip Technology MIC2774N-26BM5-TR	SOT-23-5	140 ms	Open Drain or Open Collector	Surface Mount	Multi-Voltage Supervisor	SC-74A SOT-753	2	Active Low	2.67 V		85 °C	-40 °C
Microchip Technology MIC2774L-29BM5-TR	SOT-23-5	140 ms	Complementary	Surface Mount	Multi-Voltage Supervisor	SC-74A SOT-753	2	Active Low	2.93 V		85 °C	-40 °C
Microchip Technology MIC2774L-31BM5-TR	SOT-23-5	140 ms	Complementary	Surface Mount	Multi-Voltage Supervisor	SC-74A SOT-753	2	Active Low	3.09 V		85 °C	-40 °C
Microchip Technology MIC2774H-25BM5-TR	SOT-23-5	140 ms	Complementary	Surface Mount	Multi-Voltage Supervisor	SC-74A SOT-753	2	Active High	2.53 V		85 °C	-40 °C
Microchip Technology MIC2774L-46YM5-TR	SOT-23-5	140 ms	Complementary	Surface Mount	Multi-Voltage Supervisor	SC-74A SOT-753	2	Active Low	4.68 V	Adj	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.95
	Digi-Reel®	1	$ 0.95
	Tape & Reel (TR)	3000	$ 0.72
Newark	Each (Supplied on Full Reel)	100	$ 0.76

Description

General part information

MIC2774 Series

Supervisor Complementary 2 Channel SOT-23-5

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet
