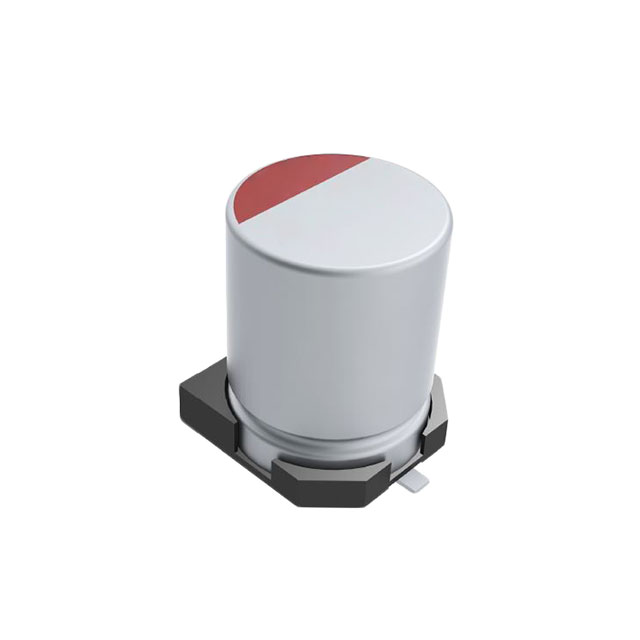

A767EB226M1VLAE050 - A767 Series

A767EB226M1VLAE050

Active
KEMET

CAP, 22UF, 35V, ALU ELEC, POLYMER, SMD ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA767EB226M1VLAE050Datasheet+2
A767EB226M1VLAE050 - A767 Series

A767EB226M1VLAE050

Active
KEMET

CAP, 22UF, 35V, ALU ELEC, POLYMER, SMD ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsA767EB226M1VLAE050Datasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationA767EB226M1VLAE050
ApplicationsGeneral Purpose
Capacitance22 µF
ESR (Equivalent Series Resistance)50 mOhms
Height - Seated (Max) [Max]0.236 in
Height - Seated (Max) [Max]6 mm
Lifetime @ Temp.2000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can - SMD
Ripple Current @ Low Frequency65 mA
Size / Dimension [diameter]0.248 in
Size / Dimension [diameter]6.3 mm
Surface Mount Land Size [x]6.6 mm
Surface Mount Land Size [x]0.26 in
Surface Mount Land Size [y]0.26 in
Surface Mount Land Size [y]6.6 mm
Tolerance20 %
TypePolymer
Voltage - Rated35 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.75
10$ 0.50
50$ 0.40
100$ 0.33
500$ 0.26
Digi-Reel® 1$ 0.75
10$ 0.50
50$ 0.40
100$ 0.33
500$ 0.26
Tape & Reel (TR) 1000$ 0.22
2000$ 0.21
5000$ 0.19
10000$ 0.18
25000$ 0.17
50000$ 0.17
NewarkEach (Supplied on Full Reel) 1000$ 0.29
2000$ 0.25
4000$ 0.25
6000$ 0.25
10000$ 0.24

Description

General part information

A767EB Series

22 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 50mOhm 2000 Hrs @ 105°C
