8439-1"X10YD

Active

3M (TC)

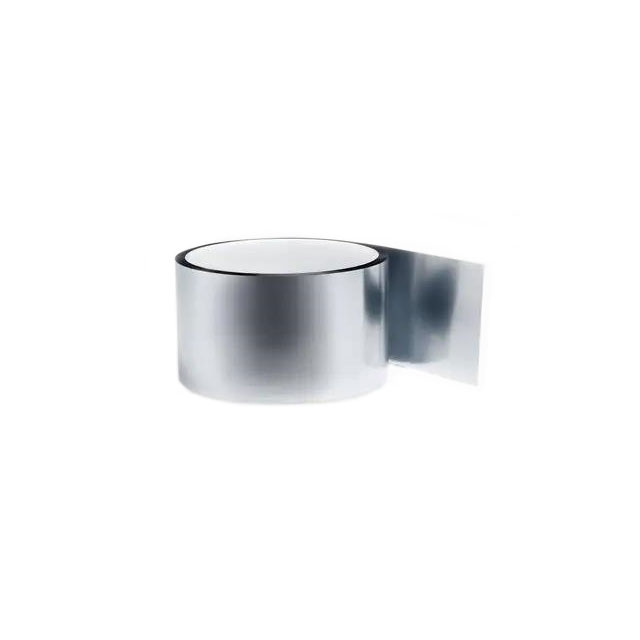

TAPE FILM SILVER 1"X10YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE FILM SILVER 1"X10YDS

Technical Specifications

Parameters and characteristics for this part

Specification	8439-1"X10YD

Adhesive	Acrylic
Backing, Carrier	Polyester
Color	Silver
Length [x]	30 ft
Length [x]	9.1 m
Length [x]	10 yds
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Film
Temperature Range [Max]	149 °C
Temperature Range [Max]	300 °F
Temperature Range [Min]	-60 °F
Temperature Range [Min]	-51 °C
Thickness	2 mils
Thickness	0.002 in
Thickness	0.051 mm
Thickness - Adhesive	1 mils
Thickness - Adhesive	0.025 mm
Thickness - Adhesive	0.001 in
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Sealing
Width [x]	25.4 mm
Width [x]	1 in

Part	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life Start	Shelf Life	Color	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Tape Type	Width [x]	Width [x]	Usage	Thickness	Thickness	Thickness	Adhesive	Length [x]	Length [x]	Length [x]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Backing, Carrier [custom]	Backing, Carrier [custom]	Thickness - Adhesive [x]
3M (TC) 8439-1"X10YD	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	18 Months	Silver	149 °C	-60 °F	300 °F	-51 °C	Film	25.4 mm	1 in	Sealing	2 mils	0.002 in	0.051 mm	Acrylic	30 ft	9.1 m	10 yds	1 mils	0.025 mm	0.001 "	Polyester
3M (TC) 8439FL	2 mils	0.051 mm		16 °C 60 °F	27 °C 80 °F	Date of Manufacture	18 Months	Silver					Protective			General Purpose				Acrylic				2 mils	0.051 mm	0.002 "		Polyester	Metalized	0.002 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Film Tape Acrylic Adhesive Silver 1.00" (25.40mm) X 30' (9.1m) 10 yds
