50.4-HF-25-7-5.5

Active

J.W. Winco

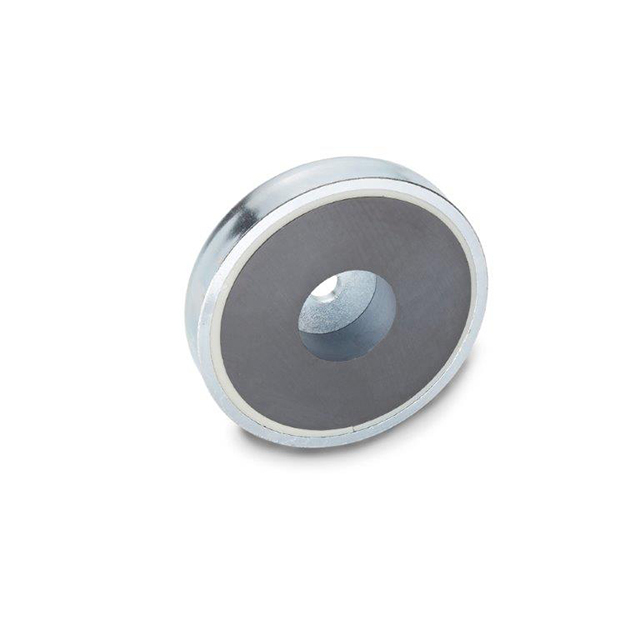

MAGNET 0.984"D X 0.276"THICK RND

Search across all available documentation for this part.

Active

J.W. Winco

MAGNET 0.984"D X 0.276"THICK RND

Technical Specifications

Parameters and characteristics for this part

Part	Finish	Shape	Material	Size [diameter]	Size [diameter]	Size [z]	Size [z]	Operating Temperature
J.W. Winco 50.4-HF-80-18-6.5	Steel Zinc	Round	Ferrite	80 mm	3.15 in	18 mm	0.709 in	200 °C
J.W. Winco 50.4-HF-63-14-6.5	Steel Zinc	Round	Ferrite	63 mm	2.48 in	14 mm	0.551 "	200 °C
J.W. Winco 50.4-HF-25-7-5.5	Steel Zinc	Round	Ferrite	25 mm	0.984 in	7 mm	0.276 in	200 °C
J.W. Winco 50.4-HF-20-6-4.3	Steel Zinc	Round	Ferrite					200 °C
J.W. Winco 50.4-HF-50-10-8.5	Steel Zinc	Round	Ferrite	50 mm	1.969 in	10 mm	0.394 in	200 °C
J.W. Winco 50.4-HF-100-22-10.5	Steel Zinc	Round	Ferrite	100 mm	3.937 in	22 mm	0.866 "	200 °C
J.W. Winco 50.4-HF-40-8-5.5	Steel Zinc	Round	Ferrite	40 mm	1.575 in	8 mm	0.315 in	200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.89

General part information

Magnet Ferrite 0.984" Dia x 0.276" H (25.00mm x 7.00mm)
