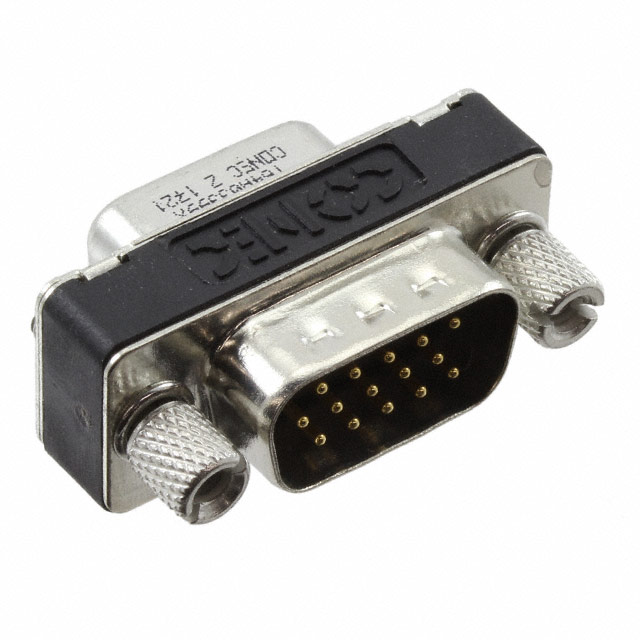

164A03399X
ActiveAmphenol CONEC
CONN DSUB ADAPTER DB15F DB15M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
164A03399X
ActiveAmphenol CONEC
CONN DSUB ADAPTER DB15F DB15M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 164A03399X |
|---|---|
| Connector Style | Connector Saver |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Convert From (Adapter End) | D-Sub, 15 Pin Male |
| Convert To (Adapter End) | D-Sub, 15 Pin Female |
| Current Rating (Amps) | 3 A |
| Housing Color | Black |
| Includes | 1 Connector, 2 Jack Screws |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.01 | |
| 10 | $ 13.88 | |||
| 25 | $ 13.15 | |||
| 50 | $ 12.96 | |||
| 100 | $ 11.44 | |||
| 250 | $ 10.68 | |||
| 500 | $ 10.45 | |||
| 1000 | $ 9.91 | |||
Description
General part information
164A033 Series
Adapter Connector D-Sub, 15 Pin Female To D-Sub, 15 Pin Male Free Hanging (In-Line)
