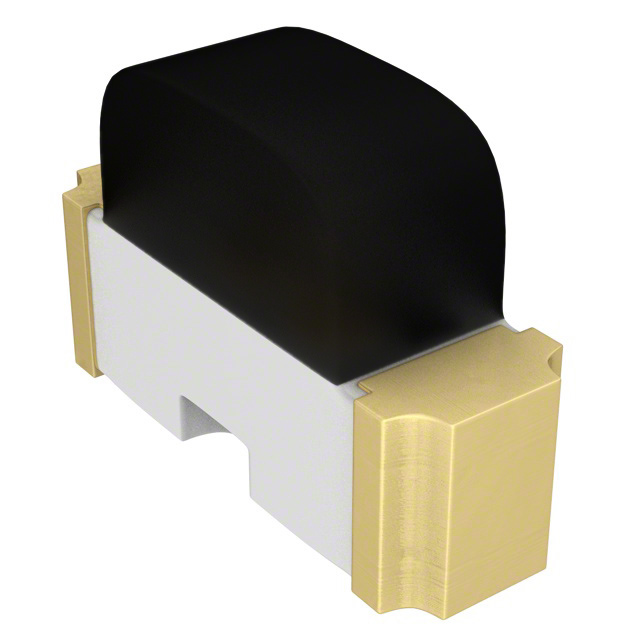

APECVA3010SGC

Active

Kingbright

SINGLE COLOR LED, SUPER BRIGHT GREEN, 2MM, ROHS COMPLIANT, SMD, 3 PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APECVA3010SGC

Active

Kingbright

SINGLE COLOR LED, SUPER BRIGHT GREEN, 2MM, ROHS COMPLIANT, SMD, 3 PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APECVA3010SGC

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating	15 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	2 mm
Supplier Device Package	SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Dominant	568 nm
Wavelength - Peak	565 nm

APECVA3010 Series

Part	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Size [x]	Lens Size [y]	Package / Case	Configuration	Lens Transparency	Current - Test	Lens Color	Height (Max) [Max] [z]	Viewing Angle	Wavelength - Peak	Supplier Device Package	Lens Style	Mounting Type	Color	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Type	Radiant Intensity (Ie) Min @ If [Min]	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max) [Max]	Wavelength
Kingbright APECVA3010QBC/G-GX	3.3 V	465 nm	2 mm	1 mm	2-SMD No Lead	Standard	Clear	20 mA	Colorless	1 mm	120 °	461 nm	SMD	Rectangle with Domed Top	Surface Mount Right Angle	Blue	2 mm	3 mm	150 mcd
Kingbright APECVA3010ZGC	3.3 V	525 nm	2 mm	1 mm	2-SMD No Lead	Standard	Clear	20 mA	Colorless	1 mm	120 °	515 nm	SMD	Rectangle with Domed Top	Surface Mount Right Angle	Green	2 mm	3 mm	350 mcd
Kingbright APECVA3010SGC	2.2 V	568 nm	2 mm	1 mm	2-SMD No Lead	Standard	Clear	20 mA	Colorless	1 mm	120 °	565 nm	SMD	Rectangle with Domed Top	Surface Mount Right Angle	Green	2 mm	3 mm	15 mcd
Kingbright APECVA3010F3C					2-SMD No Lead						120 °				Surface Mount Right Angle					Infrared (IR)	0.7 mW/sr	Side View	85 °C	-40 °C	50 mA	940 nm
Kingbright APECVA3010SYCK	2 V	590 nm	2 mm	1 mm	2-SMD No Lead	Standard	Clear	20 mA	Colorless	1 mm	120 °	590 nm	SMD	Rectangle with Domed Top	Surface Mount Right Angle	Yellow	2 mm	3 mm	150 mcd
Kingbright APECVA3010YC	2.1 V	588 nm	2 mm	1 mm	2-SMD No Lead	Standard	Clear	20 mA	Colorless	1 mm	120 °	590 nm	SMD	Rectangle with Domed Top	Surface Mount Right Angle	Yellow	2 mm	3 mm	7 mcd
Kingbright APECVA3010EC	2 V	625 nm	2 mm	1 mm	2-SMD No Lead	Standard	Clear	20 mA	Colorless	1 mm	120 °	627 nm	SMD	Rectangle with Domed Top	Surface Mount Right Angle	Red	2 mm	3 mm	15 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APECVA3010 Series

Green 568nm LED Indication - Discrete 2.2V 2-SMD, No Lead
