6791412334F

Active

DIALIGHT

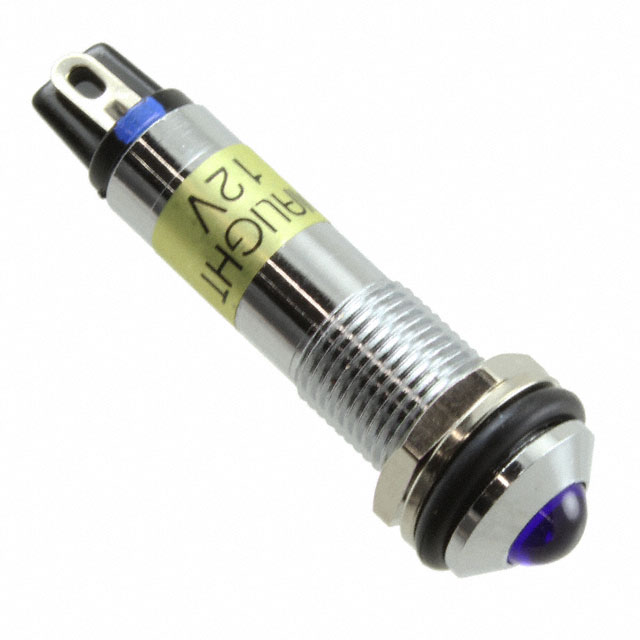

9MM HB/B PMI-12VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

9MM HB/B PMI-12VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6791412334F	6791412 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Blue	Blue
Lens Size [diameter]	6 mm	6 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	215 mcd	215 - 5400 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	30 °
Voltage	12 V	6 - 24 V

LED PANEL INDCATOR BLUE 6V

Part	Termination Style	Current	Panel Cutout Shape	Lamp Color	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Millicandela Rating	Lens Size [diameter]	Lens Style	Viewing Angle	Voltage	Type	Ratings	Ingress Protection	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]
DIALIGHT 6791412324F	Solder Lug	30 mA	Round	Blue	0.37 in	9.35 mm	5400 mcd	6 mm	Round with Domed Top	30 °	6 V	LED	DC	IP66, NEMA 4X
DIALIGHT 6791412334F	Solder Lug	30 mA	Round	Blue			215 mcd	6 mm	Round with Domed Top		12 V	LED	DC	IP66, NEMA 4X	0.37 in	9.4 mm
DIALIGHT 6791412344F	Solder Lug	30 mA	Round	Blue	0.37 in	9.35 mm	5400 mcd	6 mm	Round with Domed Top	30 °	24 V	LED	DC	IP66, NEMA 4X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Blue 12V 30mA Solder Lug
