PWC-03BFMB-LL7SPP

Active

Amphenol LTW

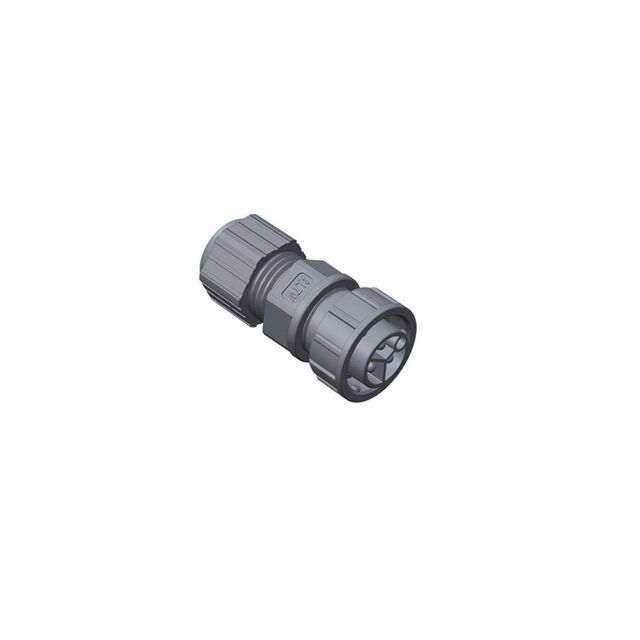

POWER, PWC, 20A, 03 PINS, FIELD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PWC-03BFMB-LL7SPP

Active

Amphenol LTW

POWER, PWC, 20A, 03 PINS, FIELD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PWC-03BFMB-LL7SPP

Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 V

PWC-03BFMB Series

Part	Primary Material	Orientation	Current Rating (Amps)	Shielding	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shell Material	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Contact Material	Connector Type	Mounting Feature	Ingress Protection	Termination	Insert Material	Features	Mounting Type	Backshell Material, Plating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Color	Material Flammability Rating	Cable Opening [custom]
Amphenol LTW PWC-03BFMB-LL7LPP	Plastic	Keyed	20 A	Unshielded	277 V	-40 °C	105 ░C	Bayonet Lock	Glass Filled Nylon Polyamide (PA)	Gold	0.398 in 0.472 in	10.1 mm 12 mm	Copper Alloy	Male Pins Receptacle	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Screw	Polyamide (PA) Nylon Glass Filled
Amphenol LTW PWC-03BFMB-LL7SPP	Plastic	Keyed	20 A	Unshielded	277 V	-40 °C	105 ░C	Push-Pull		Silver			Copper Alloy	Male Pins Plug		IP67 - Dust Tight Waterproof	Screw	Thermoplastic	Backshell Coupling Nut	Free Hanging (In-Line)	Thermoplastic	8 mm	6 mm	0.315 in	0.236 in	Black	UL94 V-0
Amphenol LTW PWC-03BFMB-LL7MPP	Plastic	Keyed	20 A	Unshielded	277 V	-40 °C	105 ░C			Silver			Copper Alloy	Male Pins Plug		IP67 - Dust Tight Waterproof	Screw	Thermoplastic	Backshell Coupling Nut	Free Hanging (In-Line)	Thermoplastic	10 mm	8 mm	0.394 in	0.315 in	Black	UL94 V-0
Amphenol LTW PWC-03BFMB-LL7APP	Plastic	Keyed	20 A	Unshielded	277 V	-40 °C	105 ░C	Bayonet Lock	Glass Filled Nylon Polyamide (PA)	Gold	0.236 in 0.472 in	6 mm	Copper Alloy	Male Pins Receptacle	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Screw	Polyamide (PA) Nylon Glass Filled										12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.08
		10	$ 9.07
		100	$ 8.11
		1000	$ 6.01

Description

General part information

PWC-03BFMB Series

3 Position Circular Connector Plug, Male Pins Screw
