SI8285_86-KIT

Active

Skyworks Solutions Inc.

EVALUATION KIT FOR SI8285 AND SI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Si8285,86 Datasheet

SI8285_86-KIT

Active

Skyworks Solutions Inc.

EVALUATION KIT FOR SI8285 AND SI

Deep-Dive with AI

DocumentsDatasheet Si8285,86 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI8285_86-KIT

Contents	Board(s)
Function	Gate Driver
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	Si8285, Si8286

SI8285 Series

Part	Pulse Width Distortion (Max)	Current - Peak Output	Common Mode Transient Immunity (Min) [Min]	Approval Agency	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Technology	Package / Case [x]	Package / Case	Package / Case [y]	Supplier Device Package	Number of Channels	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Grade	Voltage - Isolation	Function	Contents	Utilized IC / Part	Supplied Contents	Type
Skyworks Solutions Inc. SI8285DD-IS	5 ns	4 A	125 V/ns	CQC CSA UR VDE	Surface Mount	4.1 A	2 A	Capacitive Coupling	0.295 in	16-SOIC	7.5 mm	16-SOIC	1	30 V	14 V	50 ns	50 ns	125 °C	-40 °C
Skyworks Solutions Inc. SI8285ED-ASR	5 ns	4 A	125 V/ns	CQC CSA UR VDE	Surface Mount	4.1 A	2 A	Capacitive Coupling	0.295 in	16-SOIC	7.5 mm	16-SOIC	1	30 V	16 V	50 ns	50 ns	125 °C	-40 °C	AEC-Q100	Automotive
Skyworks Solutions Inc. SI8285BC-ASR	5 ns	4 A	125 V/ns	CQC CSA UL VDE	Surface Mount	4.1 A	2 A	Capacitive Coupling	0.295 in	16-SOIC	7.5 mm	16-SOIC	1	30 V	10 V	50 ns	50 ns	125 °C	-40 °C	AEC-Q100	Automotive	3750 Vrms
Skyworks Solutions Inc. SI8285DC-ISR	5 ns	4 A	125 V/ns	CQC CSA UL VDE	Surface Mount	4.1 A	2 A	Capacitive Coupling	0.295 in	16-SOIC	7.5 mm	16-SOIC	1	30 V	14 V	50 ns	50 ns	125 °C	-40 °C			3750 Vrms
Skyworks Solutions Inc. SI8285CC-IS	5 ns	4 A	125 V/ns	CQC CSA UL VDE	Surface Mount	4.1 A	2 A	Capacitive Coupling	0.295 in	16-SOIC	7.5 mm	16-SOIC	1	30 V	13.2 V	50 ns	50 ns	125 °C	-40 °C			3750 Vrms
Skyworks Solutions Inc. SI8285CC-AS	5 ns	4 A	125 V/ns	CQC CSA UL VDE	Surface Mount	4.1 A	2 A	Capacitive Coupling	0.295 in	16-SOIC	7.5 mm	16-SOIC	1	30 V	13.2 V	50 ns	50 ns	125 °C	-40 °C	AEC-Q100	Automotive	3750 Vrms
Skyworks Solutions Inc. SI8285CD-ISR	5 ns	4 A	125 V/ns	CQC CSA UR VDE	Surface Mount	4.1 A	2 A	Capacitive Coupling	0.295 in	16-SOIC	7.5 mm	16-SOIC	1	30 V	13.2 V	50 ns	50 ns	125 °C	-40 °C
Skyworks Solutions Inc. SI8285_86-KIT																							Gate Driver	Board(s)	Si8285 Si8286	Board(s)	Power Management
Skyworks Solutions Inc. SI8285EC-IS	5 ns	4 A	125 V/ns	CQC CSA UL VDE	Surface Mount	4.1 A	2 A	Capacitive Coupling	0.295 in	16-SOIC	7.5 mm	16-SOIC	1	30 V	16 V	50 ns	50 ns	125 °C	-40 °C			3750 Vrms
Skyworks Solutions Inc. SI8285DC-IS	5 ns	4 A	125 V/ns	CQC CSA UL VDE	Surface Mount	4.1 A	2 A	Capacitive Coupling	0.295 in	16-SOIC	7.5 mm	16-SOIC	1	30 V	14 V	50 ns	50 ns	125 °C	-40 °C			3750 Vrms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.27

Description

General part information

SI8285 Series

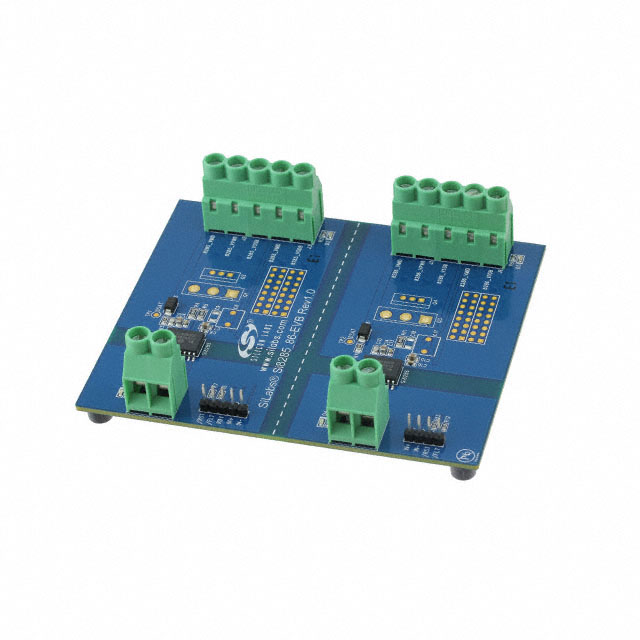

Si8285, Si8286 Gate Driver Power Management Evaluation Board
