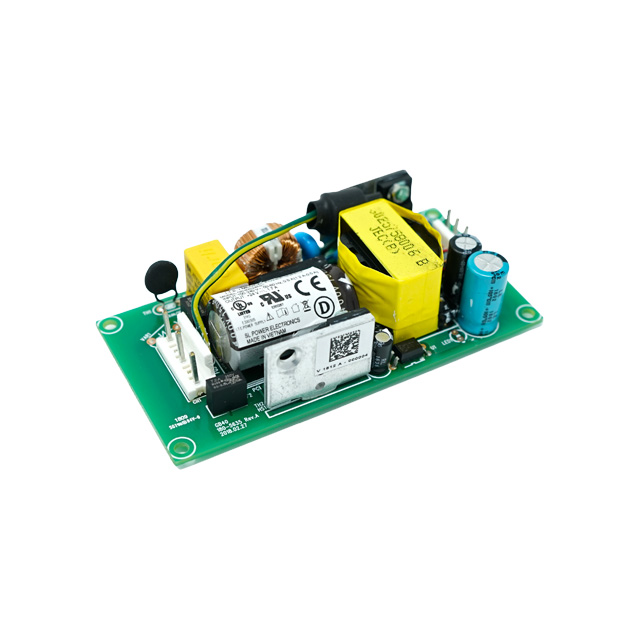

GB10S09K01

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 9V 1A 10W 7-PIN

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 9V 1A 10W 7-PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC POWER SUPPLY SINGLE-OUT 9V 1A 10W 7-PIN

Part	Power (Watts)	Approval Agency	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Voltage - Output 1	Voltage - Isolation	Minimum Load Required	Current - Output 1	Number of Outputs	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Features	Type	Standard Number
SL POWER / Advanced Energy GB10S09K01	10 W	CE, cURus, UL	88 %	-25 °C	70 °C	240 VAC	100 VAC	Chassis Mount	9 V	4000 V		1.1 A	1	ITE (Commercial), Medical	40.6 mm	1.6 "	3.38 in	85.9 mm	25.4 mm	1 "	Universal Input	Open Frame
SL POWER / Advanced Energy GB10S09P01	9 W	CE, cURus, DEMKO	88 %	-25 °C	70 °C	264 VAC	90 VAC	Chassis Mount	9 V	4000 V		1 A	1	ITE (Commercial), Medical	27.3 mm	1.07 in	2.05 "	52 mm	18 mm	0.71 in	Universal Input	Open Frame	60601-1, 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 9V 100 ~ 240 VAC Input
