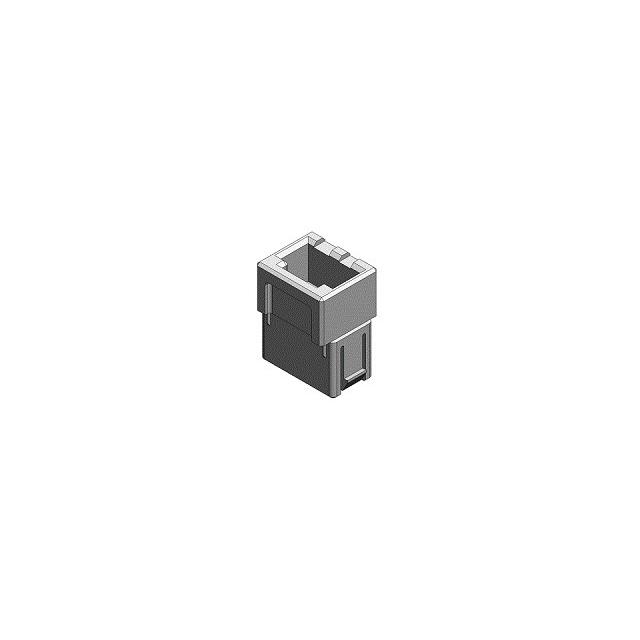

JN14CR02PM1
ActiveJAE Electronics
COMPACT WATERPROOF CONNECTOR 2 P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JN14CR02PM1
ActiveJAE Electronics
COMPACT WATERPROOF CONNECTOR 2 P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JN14CR02PM1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Features | Waterproof (Mated, IP67) |
| Insulation Material | Synthetic Resin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.93 | |
| 10 | $ 1.76 | |||
| 30 | $ 1.66 | |||
| 50 | $ 1.63 | |||
| 100 | $ 1.55 | |||
| 250 | $ 1.36 | |||
Description
General part information
JN14CR Series
2 Rectangular Connectors - Housings Receptacle Black
