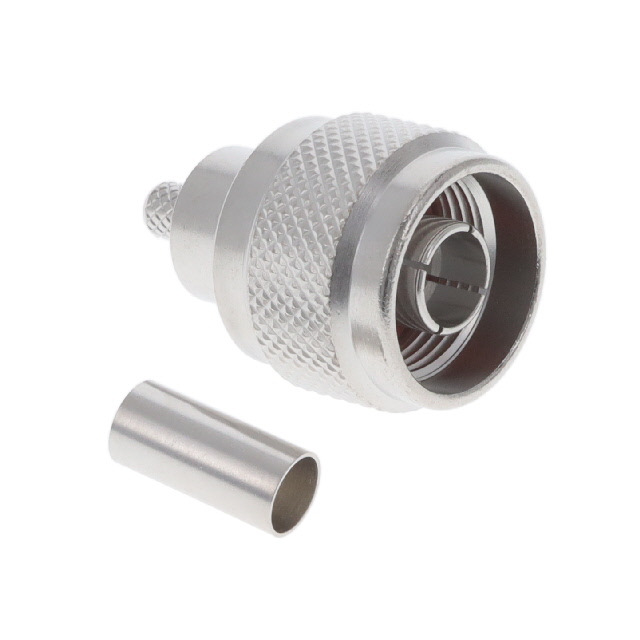

R161083000

Active

Radiall USA, Inc.

N / STRAIGHT PLUG FULL CRIMP-TYP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / STRAIGHT PLUG FULL CRIMP-TYP

Technical Specifications

Parameters and characteristics for this part

Specification	R161083000

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-142, 400, 223
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP65 - Dust Tight, Water Resistant
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	850 V

Part	Body Finish	Connector Type	Ingress Protection	Cable Group	Voltage Rating	Mounting Type	Body Material	Shield Termination	Dielectric Material	Connector Style	Frequency - Max [Max]	Center Contact Material	Contact Termination	Insertion Loss	Mating Cycles	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Center Contact Plating	Impedance	Includes	Cable Group
Radiall USA, Inc. R161088000	White Bronze	Male Pin Plug	IP65 - Dust Tight Water Resistant	RG-214	1400 V	Free Hanging (In-Line)	Brass	Crimp	Polytetrafluoroethylene (PTFE)	N Type	11 GHz	Brass	Crimp	0.15 dB	500	1	155 °C	-55 °C	Silver	Gold	50 Ohms
Radiall USA, Inc. R161083137		Male Pin Plug		223 400 RG-142	850 V	Free Hanging (In-Line)	Brass	Crimp	Polytetrafluoroethylene (PTFE)	N Type	11 GHz	Brass	Crimp		500	1	155 °C	-55 °C		Silver	50 Ohms	1 Connector 1 Contact 1 Ferrule
Radiall USA, Inc. R161083000	White Bronze	Male Pin Plug	IP65 - Dust Tight Water Resistant	223 400 RG-142	850 V	Free Hanging (In-Line)	Brass	Crimp	Polytetrafluoroethylene (PTFE)	N Type	11 GHz	Brass	Crimp	0.15 dB	500	1	155 °C	-55 °C	Silver	Gold	50 Ohms
Radiall USA, Inc. R161082000	White Bronze	Male Pin Plug	IP65 - Dust Tight Water Resistant	RG-58	850 V	Free Hanging (In-Line)	Brass	Crimp	Polytetrafluoroethylene (PTFE)	N Type	11 GHz	Brass	Crimp	0.15 dB	500	1	155 °C	-55 °C	Silver	Gold	50 Ohms		141
Radiall USA, Inc. R161088000W	White Bronze	Male Pin Plug	IP65 - Dust Tight Water Resistant	RG-214	1400 V	Free Hanging (In-Line)	Brass	Crimp	Polytetrafluoroethylene (PTFE)	N Type	11 GHz	Brass	Crimp	0.15 dB	500	1	155 °C	-55 °C	Silver	Gold	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
