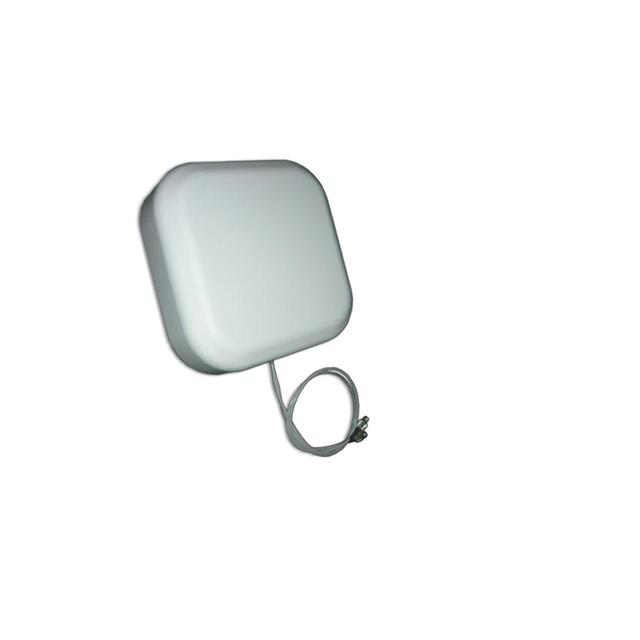

PAS69278P-30D43F

Active

TE Connectivity Raychem Cable Protection

PANEL,LOW PIM,NF 698-2700MHZ,8DBI,DO

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

PANEL,LOW PIM,NF 698-2700MHZ,8DBI,DO

Technical Specifications

Parameters and characteristics for this part

Part	Frequency (Center/Band)	Frequency Group	RF Family/Standard	Mounting Type	Gain	Applications	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Number of Bands	Ingress Protection	Termination	VSWR	Antenna Type	Power - Max [Max]	Frequency Range [Max]	Frequency Range [Min]	Height (Max)	Height (Max)
TE Connectivity Raychem Cable Protection PAS69278-FNF2
TE Connectivity Raychem Cable Protection PAS69278P-FNF	1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	Wide Band	Cellular WiFi	Bracket Mount	7.5 dB 8.4 dBi 8.5 dBi 8.7 dBi 9 dBi 9.5 dBi 9.7 dB 9.8 dB	GSM LTE WiMax™	3.2 in	81.28 mm	8	IP55	N Type Female	2	Panel	50 W	2.7 GHz 960 MHz	1.71 GHz 698 MHz
TE Connectivity Raychem Cable Protection PAS69278P-30D43F	2.2 GHz 829 MHz	Wide Band	Cellular WiFi	Bracket Mount	10 dBi	LTE Wi-Fi			2			1.8 2	Panel	50 W	2.7 GHz 960 MHz	1.71 GHz 698 MHz	82 mm	3.228 in
TE Connectivity Raychem Cable Protection PAS69278P-91NF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Panel Antenna, Multi Band, Cellular, External Mount, Wall/Ceiling Mount, 4.3-10, Directional, Multiple Ports, > 6 dBi Peak Gain
