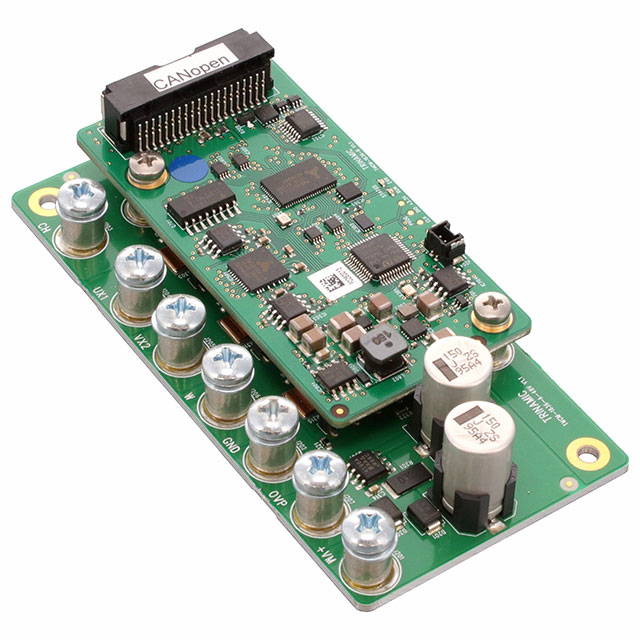

TMCM-1636-48V-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
BLDC/DC SERVO DRIVE, 20A, 48V
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-1636-48V-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
BLDC/DC SERVO DRIVE, 20A, 48V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1636-48V-CANOPEN | TMCM-1636 Series |
|---|---|---|
| Control / Drive Type | Brushless | Brushless |
| Current - Output | 20 A | 20 - 30 A |
| Motor Type | Brushless (BLDC) | Brushless (BLDC) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Type | Board | Board |
| Voltage - Load [Max] | 60 V | 28 - 60 V |
| Voltage - Load [Min] | 12 V | 12 V |
| Voltage - Supply | 48 VDC | 24 - 48 VDC |
| Wattage - Load | 1 kW | 1 kW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 341.38 | |
TMCM-1636 Series
BLDC/DC SERVO DRIVE, 20A, 48V
| Part | Wattage - Load | Operating Temperature [Min] | Operating Temperature [Max] | Motor Type | Voltage - Supply | Current - Output | Type | Voltage - Load [Max] | Voltage - Load [Min] | Mounting Type | Control / Drive Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1636-48V-CANOPEN | 1 kW | -30 ░C | 60 °C | Brushless (BLDC) | 48 VDC | 20 A | Board | 60 V | 12 V | Chassis Mount | Brushless |
Analog Devices Inc./Maxim Integrated TMCM-1636-48V-TMCL | 1 kW | -30 ░C | 60 °C | Brushless (BLDC) | 48 VDC | 20 A | Board | 60 V | 12 V | Chassis Mount | Brushless |
Analog Devices Inc./Maxim Integrated TMCM-1636-24V-CANOPEN | 1 kW | -30 ░C | 60 °C | Brushless (BLDC) | 24 VDC | 30 A | Board | 28 V | 12 V | Chassis Mount | Brushless |
Description
General part information
TMCM-1636 Series
Brushless 48V Supply 20A 12V ~ 60V Load
Documents
Technical documentation and resources
No documents available
