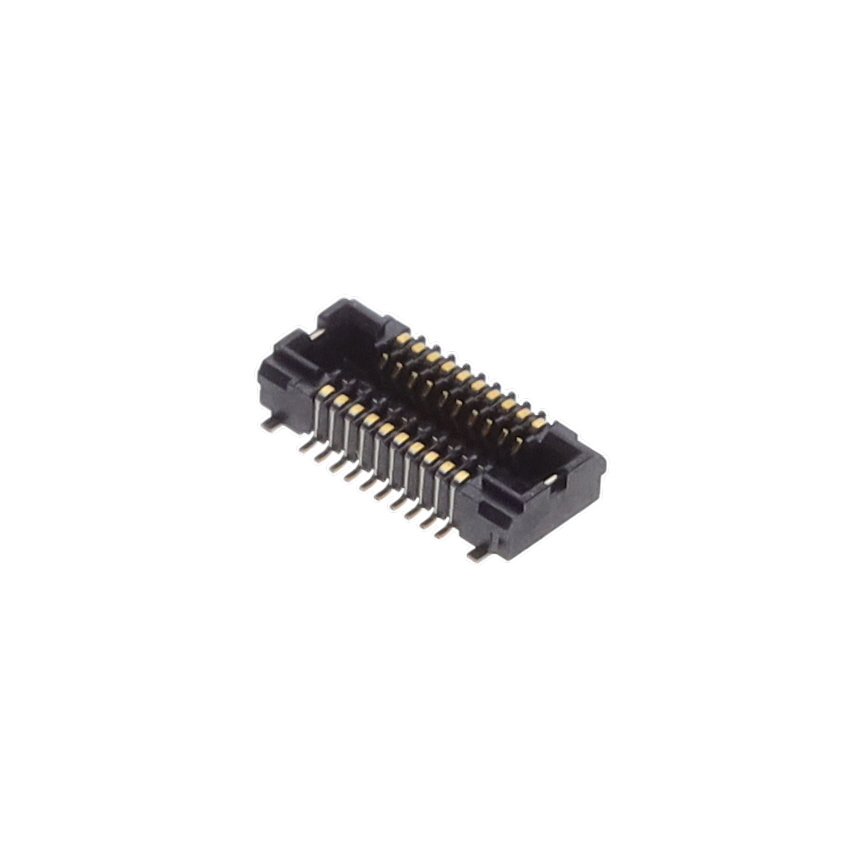

AXF5G2012A

Active

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5G2012A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Connector Type	Features	Number of Positions	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Number of Rows	Height Above Board [z]	Height Above Board [z]
Panasonic Electric Works AXF5G2012A	Surface Mount	Socket Center Strip Contacts	Solder Retention	20	0.016 in	0.4 mm	1.5 mm	Gold	2	0.057 in	1.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Connector Socket, Center Strip Contacts Surface Mount Gold

Technical documentation and resources

No documents available
