Q-25038000H036i

Active

Amphenol Custom Cable

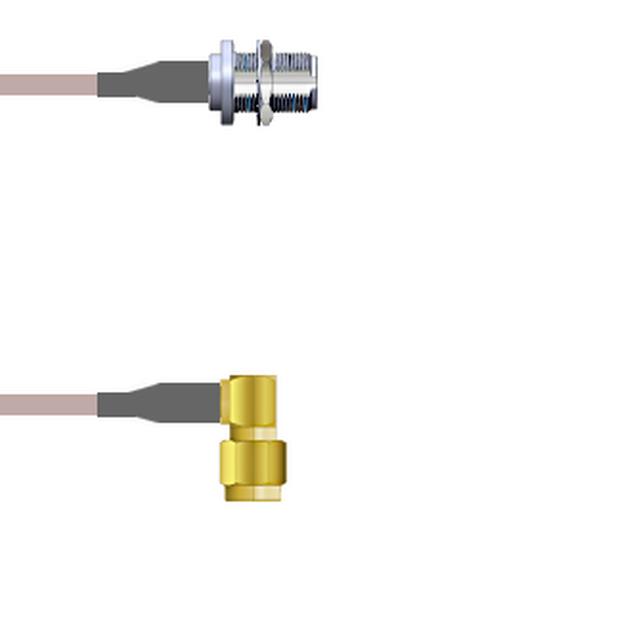

CBL ASSY SMA-NTYPE PLUG-JACK 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-25038000H036i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-JACK 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-25038000H036i

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-250380 Series

Part	2nd Connector	Color	1st Connector Mounting Type	Length	Length	Length	Overall Impedance	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	1st Connector	2nd Connector Mounting Feature	Features	Frequency - Max [Max]	Cable Type	Style	Length [x]	Length [x]
Amphenol Custom Cable Q-25038000H001M	N-Type Jack	Copper	Free Hanging (In-Line)	1 m	3.3 ft	39.4 in	50 Ohms	Female	Male	Panel Mount	Right Angle SMA Plug	Bulkhead - Front Side Nut	Shielded	11 GHz	RG-142	SMA to N-Type
Amphenol Custom Cable Q-25038000H006i	N-Type Jack	Copper	Free Hanging (In-Line)	152.4 mm		6 in	50 Ohms	Female	Male	Panel Mount	Right Angle SMA Plug	Bulkhead - Front Side Nut	Shielded	11 GHz	RG-142	SMA to N-Type
Amphenol Custom Cable Q-25038000H.25M	N-Type Jack	Copper	Free Hanging (In-Line)				50 Ohms	Female	Male	Panel Mount	Right Angle SMA Plug	Bulkhead - Front Side Nut	Shielded	11 GHz	RG-142	SMA to N-Type	9.843 "	250 mm
Amphenol Custom Cable Q-25038000H036i	N-Type Jack	Copper	Free Hanging (In-Line)	91.44 cm		36 in	50 Ohms	Female	Male	Panel Mount	Right Angle SMA Plug	Bulkhead - Front Side Nut	Shielded	11 GHz	RG-142	SMA to N-Type
Amphenol Custom Cable Q-25038000H012i	N-Type Jack	Copper	Free Hanging (In-Line)	304.8 mm		12 "	50 Ohms	Female	Male	Panel Mount	Right Angle SMA Plug	Bulkhead - Front Side Nut	Shielded	11 GHz	RG-142	SMA to N-Type
Amphenol Custom Cable Q-25038000H0.5M	N-Type Jack	Copper	Free Hanging (In-Line)	50 cm		19.69 "	50 Ohms	Female	Male	Panel Mount	Right Angle SMA Plug	Bulkhead - Front Side Nut	Shielded	11 GHz	RG-142	SMA to N-Type
Amphenol Custom Cable Q-25038000H.75M	N-Type Jack	Copper	Free Hanging (In-Line)	750 mm		29.53 "	50 Ohms	Female	Male	Panel Mount	Right Angle SMA Plug	Bulkhead - Front Side Nut	Shielded	11 GHz	RG-142	SMA to N-Type
Amphenol Custom Cable Q-25038000H009i	N-Type Jack	Copper	Free Hanging (In-Line)	228.6 mm		9 "	50 Ohms	Female	Male	Panel Mount	Right Angle SMA Plug	Bulkhead - Front Side Nut	Shielded	11 GHz	RG-142	SMA to N-Type
Amphenol Custom Cable Q-25038000H048i	N-Type Jack	Copper	Free Hanging (In-Line)	1200 mm	4 ft	48 in	50 Ohms	Female	Male	Panel Mount	Right Angle SMA Plug	Bulkhead - Front Side Nut	Shielded	11 GHz	RG-142	SMA to N-Type
Amphenol Custom Cable Q-25038000H002M	N-Type Jack	Copper	Free Hanging (In-Line)	2 m	6.6 ft	78.7 in	50 Ohms	Female	Male	Panel Mount	Right Angle SMA Plug	Bulkhead - Front Side Nut	Shielded	11 GHz	RG-142	SMA to N-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 204.92
		25	$ 200.94
		50	$ 196.97
		100	$ 192.99
		250	$ 189.02

Description

General part information

Q-250380 Series

Cable Assembly Coaxial SMA to N-Type RG-142 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
