MS3106E16S-1P

Active

ITT Cannon, LLC

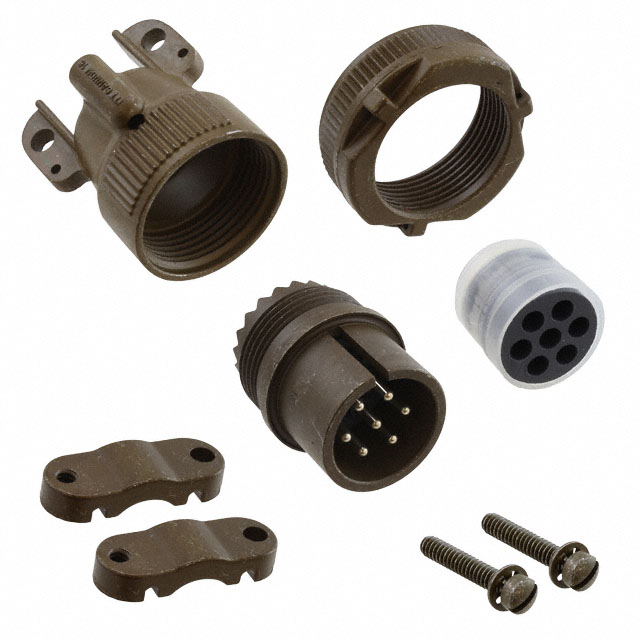

CONN PLUG MALE 7P SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106E16S-1P

Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	16S-1
Voltage Rating	700 VDC, 500 VAC

MS3106E16 Series

Part	Shell Material	Current Rating (Amps)	Mounting Type	Ingress Protection	Number of Positions	Contact Finish - Mating	Grade	Features	Shell Size - Insert	Orientation	Primary Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Qualification	Color	Shell Finish	Contact Material	Applications	Insert Material	Shielding	Cable Opening [custom]	Cable Opening [custom]
ITT Cannon, LLC MS3106E16S-1PF187	Aluminum Alloy	22 A	Free Hanging (In-Line)	Environment Resistant	7	Silver	Military	Cable Clamp Coupling Nut	16S-1	N	Metal	500 VAC 700 VDC	-55 °C	125 °C	Male Pins Plug	MIL-DTL-5015	Olive Drab	Olive Drab Cadmium
ITT Cannon, LLC MS3106E16S-4S	Aluminum Alloy	22 A	Free Hanging (In-Line)	Environment Resistant	2	Silver	Military	Cable Clamp Coupling Nut	16S-4	N	Metal	900 VAC 1250 VDC	-55 °C	125 °C	Female Sockets Plug	MIL-DTL-5015	Olive Drab	Olive Drab Cadmium
ITT Cannon, LLC MS3106E16S-8SF187	Aluminum Alloy	22 A	Free Hanging (In-Line)	Environment Resistant		Silver	Military	Cable Clamp Coupling Nut	16S-8	N	Metal	500 VAC 700 VDC	-55 °C	125 °C	Female Sockets Plug	MIL-DTL-5015	Olive Drab	Olive Drab Cadmium
ITT Cannon, LLC MS3106E16S-1P	Aluminum Alloy	22 A	Free Hanging (In-Line)	Environment Resistant	7	Silver	Military	Cable Clamp Coupling Nut	16S-1	N	Metal	500 VAC 700 VDC	-55 °C	125 °C	Male Pins Plug	MIL-DTL-5015	Olive Drab	Olive Drab Cadmium
ITT Cannon, LLC MS3106E16S-1PW	Aluminum Alloy	22 A	Free Hanging (In-Line)	Environment Resistant	7	Silver	Military	Cable Clamp Coupling Nut	16S-1	W	Metal	500 VAC 700 VDC	-55 °C	125 °C	Male Pins Plug	MIL-DTL-5015	Olive Drab	Olive Drab Cadmium
ITT Cannon, LLC MS3106E1612P	Aluminum Alloy	23 A	Free Hanging (In-Line)	Environment Resistant	1	Silver	Military	Backshell Coupling Nut	16-12	N	Metal	500 VAC 700 VDC	-55 °C	125 °C	Male Pins Plug	MIL-DTL-5015	Olive Drab	Olive Drab Cadmium	Copper Alloy	Aviation Industrial Marine Military	Plastic	Unshielded	12.7 mm	0.5 in
ITT Cannon, LLC MS3106E16S-1SF187	Aluminum Alloy	22 A	Free Hanging (In-Line)	Environment Resistant	7	Silver	Military	Cable Clamp Coupling Nut	16S-1	N	Metal	500 VAC 700 VDC	-55 °C	125 °C	Female Sockets Plug	MIL-DTL-5015	Olive Drab	Olive Drab Cadmium
ITT Cannon, LLC MS3106E16-11S	Aluminum Alloy	41 A	Free Hanging (In-Line)	Environment Resistant	2	Silver	Military	Cable Clamp Coupling Nut	16-11	N	Metal	500 VAC 700 VDC	-55 °C	125 °C	Female Sockets Plug	MIL-DTL-5015	Olive Drab	Olive Drab Cadmium
ITT Cannon, LLC MS3106E16S-8PX	Aluminum Alloy	22 A	Free Hanging (In-Line)	Environment Resistant		Silver	Military	Cable Clamp Coupling Nut	16S-8	X	Metal	500 VAC 700 VDC	-55 °C	125 °C	Male Pins Plug	MIL-DTL-5015	Olive Drab	Olive Drab Cadmium
ITT Cannon, LLC MS3106E16S-4P	Aluminum Alloy	22 A	Free Hanging (In-Line)	Environment Resistant	2	Silver	Military	Cable Clamp Coupling Nut	16S-4	N	Metal	900 VAC 1250 VDC	-55 °C	125 °C	Male Pins Plug	MIL-DTL-5015	Olive Drab	Olive Drab Cadmium
