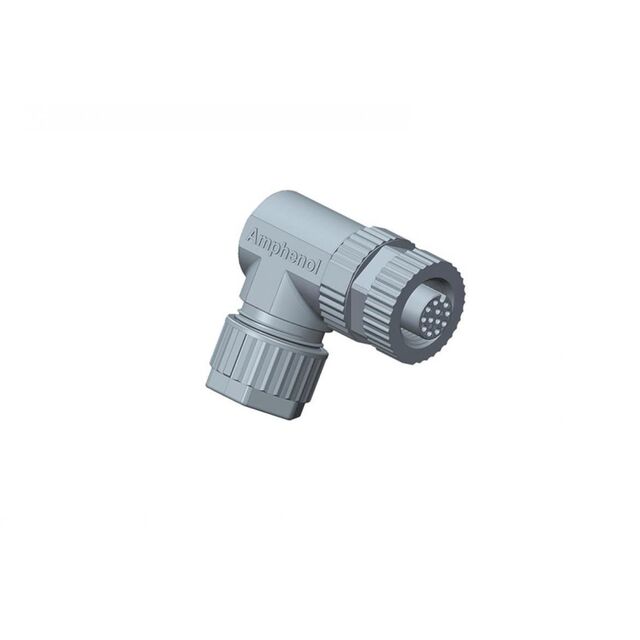

M12A-06BFFA-SR7001

Active

Amphenol LTW

M SERIES, M12, 2A, 06 PINS, FIEL

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M12, 2A, 06 PINS, FIEL

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-06BFFA-SR7001

Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	M12-6
Shielding	Unshielded
Termination	Screw
Voltage Rating	30 VDC

Part	Shell Size - Insert	Voltage Rating	Connector Type	Orientation	Contact Finish - Mating	Number of Positions	Contact Material	Backshell Material, Plating	Color	Features	Shielding	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Ingress Protection	Mounting Type	Current Rating (Amps)	Insert Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol LTW M12A-06BFFA-SR7001	M12-6	30 VDC	Female Sockets Plug	A	Gold	6	Copper Alloy	Thermoplastic	Black	Backshell Coupling Nut	Unshielded	Plastic	4.5 mm 6.5 mm	0.177 in 0.256 in	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	2 A	Thermoplastic	Screw	-40 °C	105 ░C
Amphenol LTW M12A-06BFFA-SL8001	M12-6	60 VAC	Female Sockets Plug	A	Gold	6	Copper Alloy		Black	Backshell Coupling Nut	Unshielded	Plastic	4.5 mm 6.5 mm	0.177 in 0.256 in	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	2 A	Thermoplastic	Screw	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Screw
